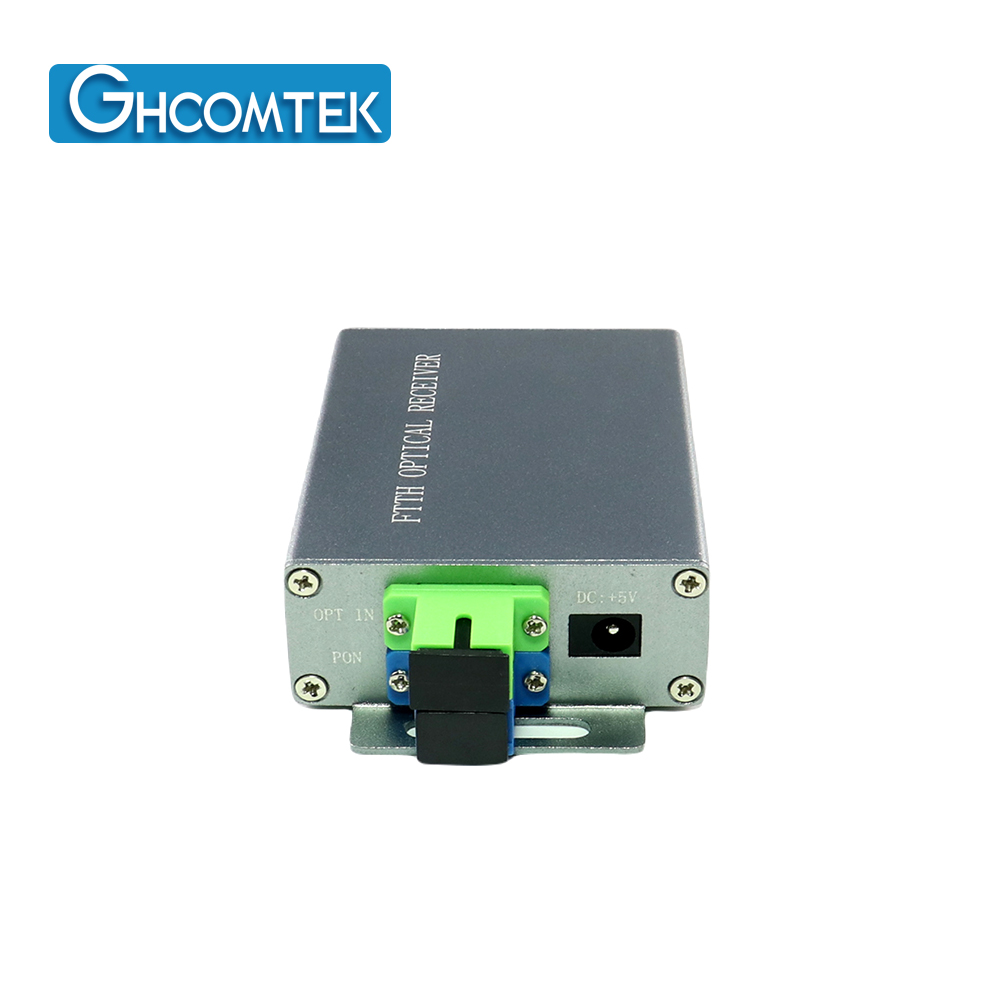

1550nm CATV+SATV WDM Optical Receiver SCAPC-SCUPC HY-21-R37Ax

1550nm CATV+SATV WDM Optical Receiver SCAPC-SCUPC HY-21-R37Ax

Description

1.Designed for FTTH(Fiber To The Home) networks

2. Excellent linearity and flatness

3. Wide range of optical input power

4. Single-mode fiber high return loss

5. Using GaAs amplifier active devices

6. Ultra-low noise technology

7. Smaller size and easier install

8. Bicolor LEDs for optical power indication (Red:optical power<-12dBm,Green:-

12dBm<optical power<+1dBm,Red & Green Flashing:optical power>+1dBm)

9. Build-in optical AGC and WDM function

10. Using Aluminum alloy housing, good heat dissipation performance

Specification

Number	Item	Unit	Description	Remark
Customer Interface
1	RF Connector		F-female
2	Optical In Connector		SC/APC
3	Optical Out Connector		SC/PC
4	Power Adapter		DC2.1
Optical Parameter
5	Responsivity	A/W	≥0.9
6	Receive Optical Power	dBm	-18～+3
6	Receive Optical Power	dBm	-10～0	AGC
7	Optical Return Loss	dB	≥45
8	Input Wavelength	nm	1100～1650
9	Receive Wavelength	nm	1100～1650/1550
10	Pass Wavelength	nm	1310/1490	PON
11	Optical Fiber Type		Single Mode
RF Parameter
12	Frequency Range	MHz	45～2150
13	Flatness	dB	±1
14	Output Level	dBµV	≥80	AGC
15	CNR	dB	≥50	-1dBm input power
16	CSO	dB	≥65
17	CTB	dB	≥62
18	Return Loss	dB	≥12
19	AGC Stability	dB	±1
20	Output Impedance	Ω	75
Other Parameter
21	Power Supply	VDC	5
22	Power Consumption	W	<2
23	Dimensions	mm	113x57x25
