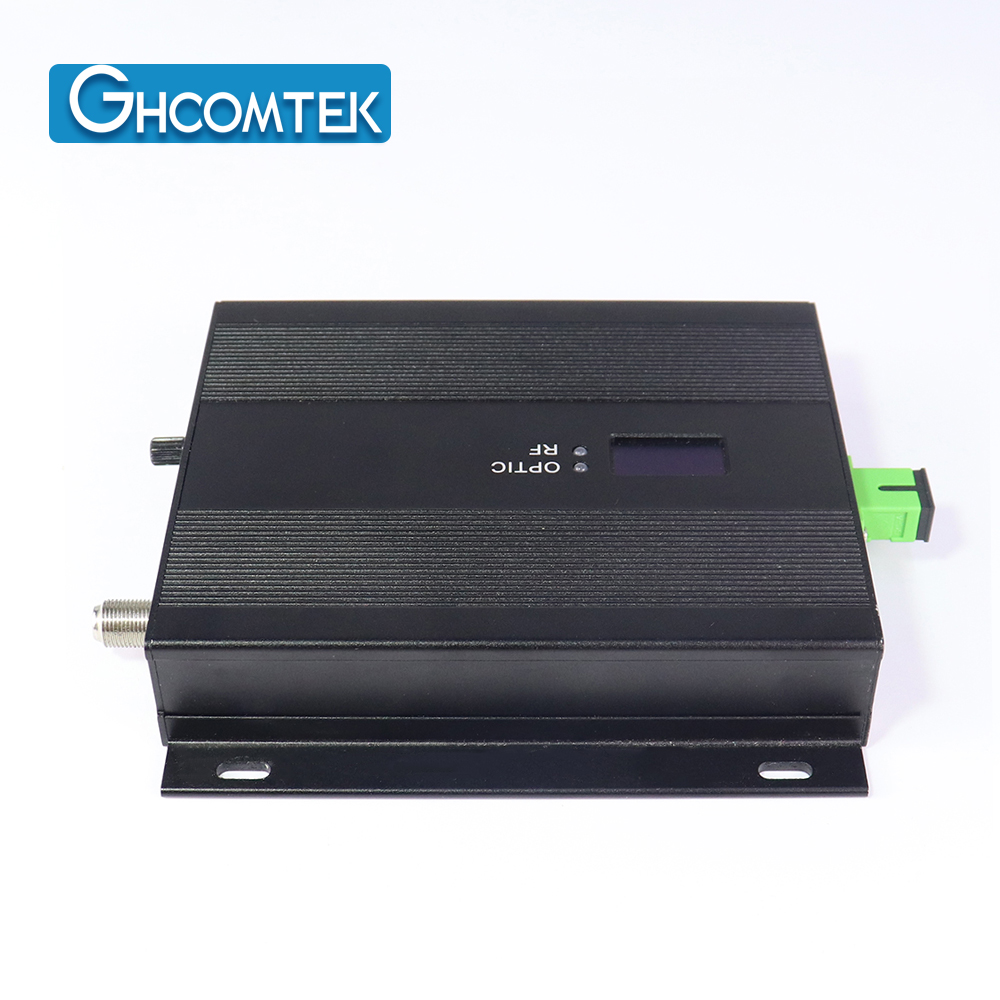

    1550nm Mini CATV& Satellite IF Optical Transmitter 10dBm HY-21-SMT15P10

    1550nm Mini CATV& Satellite IF Optical Transmitter 10dBm HY-21-SMT15P10


    Description

    Designed for FTTH(Fiber To The Home) networks

    Wide operating frequency range:45~2400MHz

    Excellent Linearity and flatness

    Single-mode fiber high return loss

    Using GaAs amplifier active devices

    Ultra low noise technology

    Using DFB coaxial small package laser

    Smaller size and easier install

    Output 13/18V、0/22KHz for LNB working

    Using bicolor LEDs for 13/18V,0/22KHz output indication

    Using Aluminum alloy Housing, good heat dissipation performance








    Specification

    Number

    Item

    Unit

    Description


    Customer Interface

    1

    RF Connector


    F-female


    2

    Optical Connector


    SC/APC


    3

    Power Adapter


    DC2.1


    Optical Parameter

    4

    Optical Return Loss

    dB

    ≥45


    5

    Output Optical Wavelength

    nm

    1310/1550


    6

    Output Optical Power

    mW

    10


    7

    Optical Fiber Type


    Single   Mode


    RF+SAT-IF Parameter

    8

    Frequency Range

    MHz

    45~860


    950~2400


    9

    Flatness

    dB

    ±1


    10

    Input Level

    dBµV

    80±5


    75±10


    11

    Input Impedance

    Ω

    75


    12

    Return Loss

    dB

    ≥12


    13

    C/N

    dB

    ≥52


    14

    CSO

    dB

    ≥65


    15

    CTB

    dB

    ≥62


    16

    LNB Power supply

    V

    13/18


    17

    Maximum Current For   LNB

    mA

    350


    18

    22KHz Accuracy

    KHz

    22±4


    Other Parameter

    19

    Power Supply

    VDC

    12


    20

    Power Consumption

    W

    <3


    21

    Dimensions

    mm

    105x84x25
