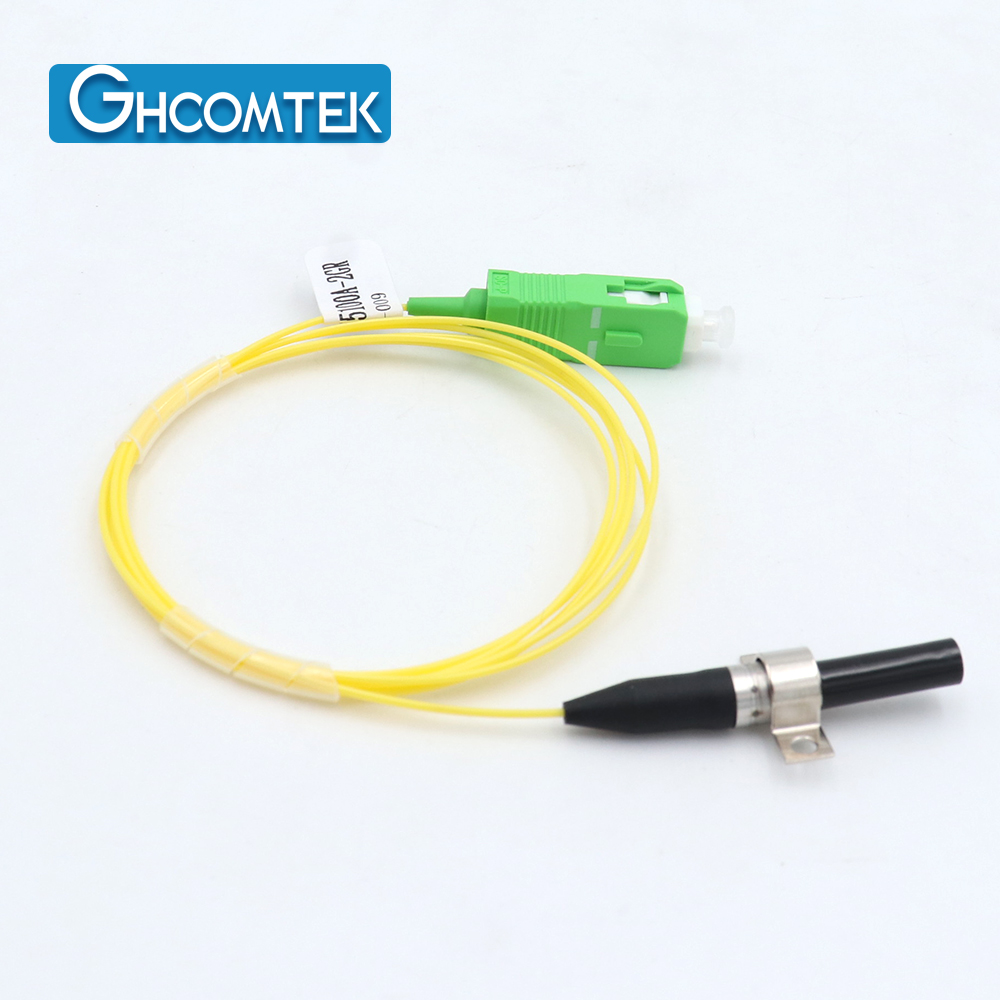

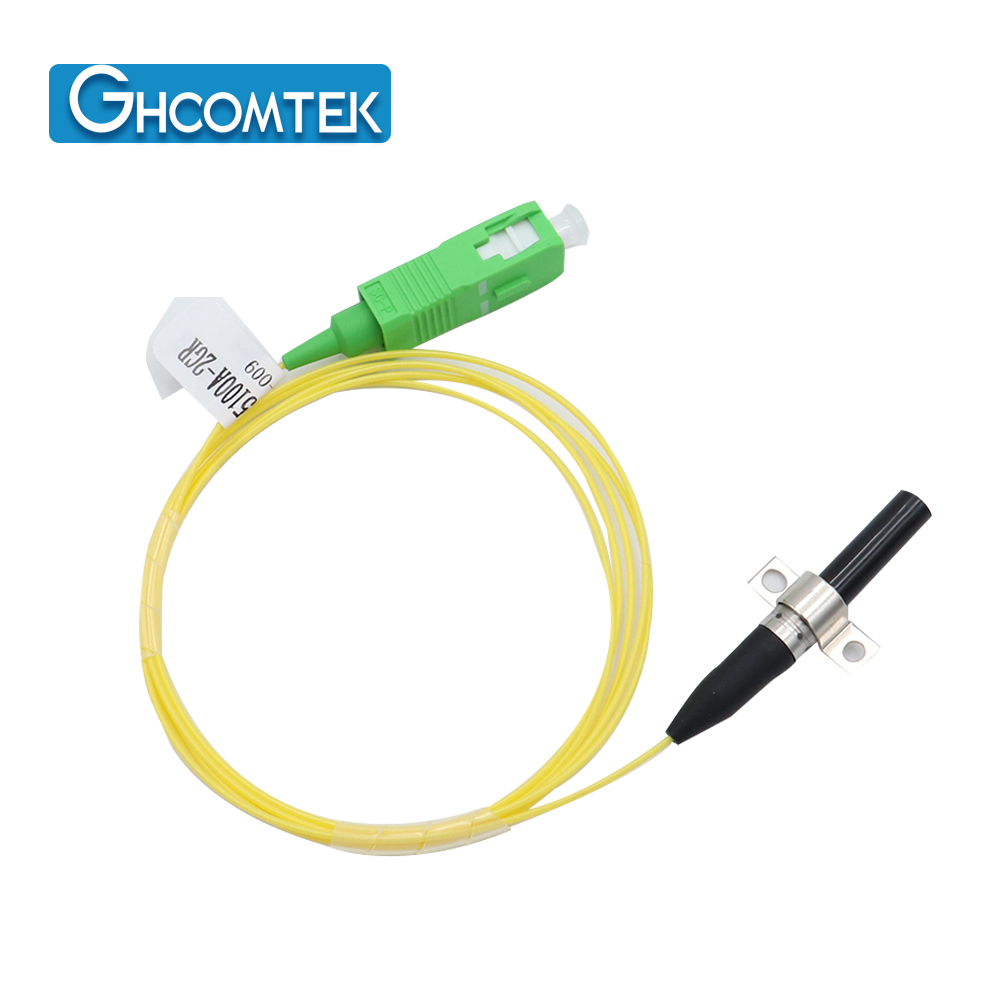

1550nm direct modulation with DFB-LD Transmitter Laser Module HY-21-SDFB15

Description

1550nm direct modulation with DFB-LD as Transmitter

Low noise, Low distortion Low threshold current

Built-in InGaAs/PIN monitor

High reliability,Long operation life

Specification

Parameter	Symbol	Ratings	Unit	Notes
Reverse Voltage（LD）	Vr(LD)	2	V	CW
Forward Current（LD）	If(LD)	100	mA	CW
Reverse Voltage（MPD）	Vr(PD)	15	V	CW
Forward Current（MPD）	If(PD)	2	mA	CW
Storage Temperature	Tstg	-40~ +85	℃	-
Operating Temperature	Topr	-20~ +70	℃
Lead Soldering Temperature/Time	Ts	260/10	℃/S	-
Fiber Yield Strength	-	1	kgf	-
Fiber Bend Radius	-	60	mm	-
