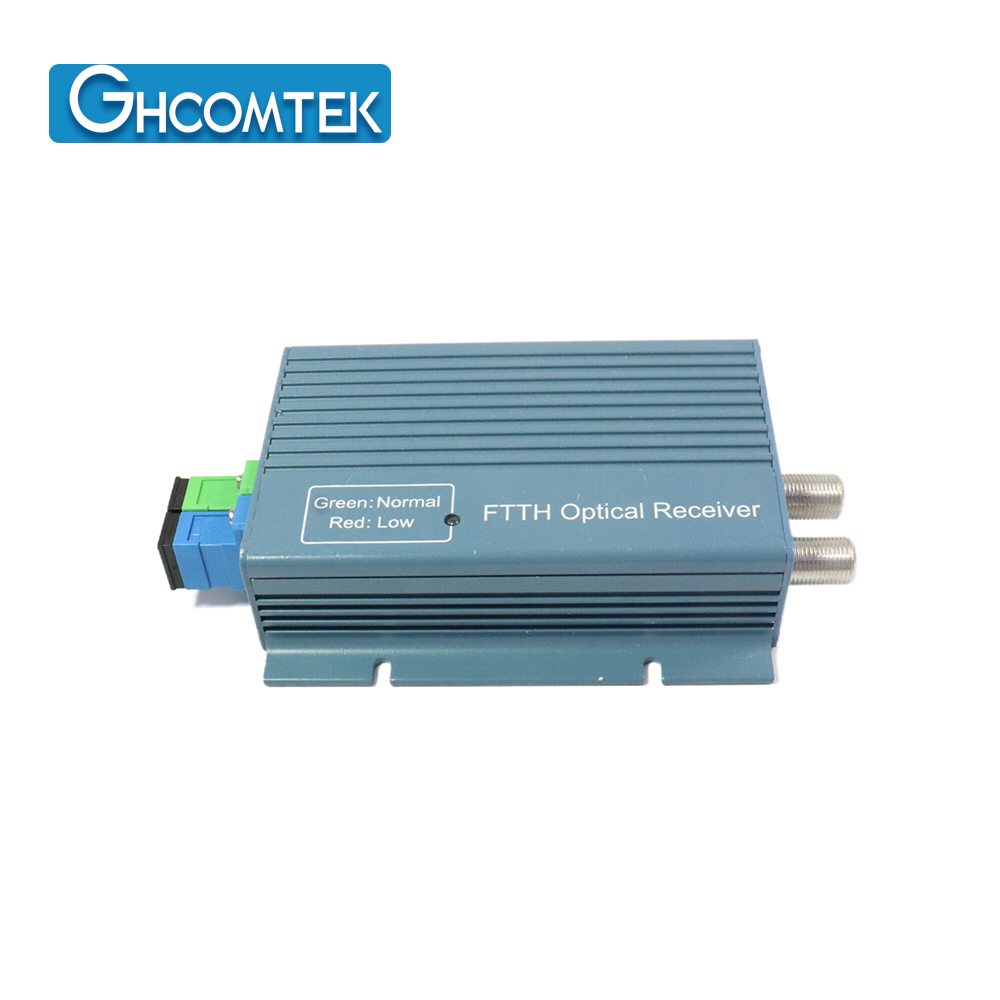

Active FTTH WDM Optical Receiver For XGSPON 1550nm For RF CATV,1490/1310nm 1270nm/1577nm For Internet HY-21-RX32Bx

Description

HY-21-RX32 optical receiver is home optical receiver with optical fiber access as its ultimate goal. It is suitable for FTTH (fibre to the home) network fiber subscriber access terminals, enabling analog or digital signals to enter the home. The machine uses low-power photo detectors, GaAs and optical AGC technology to meet the fiber-to-the-home CATV reception needs. This device can increase WDM and achieve triple play.

Specification

Input optical power	0dBm~-10dBm(Analog signal）	Carrier to Noise Ratio (Note)	≥51dB
Input optical power	&0dBm~-18dBm(Digital signal）	AGC Control range	0dBm~-9dBm
optical reflection loss	＞45 dB	CTB(note)	≥65dB
Optical connector form	FC/APC or SC/APC or FC/PC or SC/PC	CSO(note)	≥62dB
Frequency Range	45~1006MHz	Host voltage	DC5V
In-band flatness	±1dB@45~1006MHz	Adapter voltage	AC90V ~145V&AC145V ~ 265V or custom
RF output reflection	≥16dB@ 47~550MH ; ≥14dB@1006MHz	Infeed voltage	DC5V
Gain adjustment range	0-18dB	Operating temperature	-20℃ ~+55℃
Output level	（78~80）dBuV(AGC:@-9~+0dBm，Pin=0dBm)	power	<1W
Output port number	1or 2	Product net size	129×79×26mm
RF output impedance	75Ω	Product net weight	0.17kg
