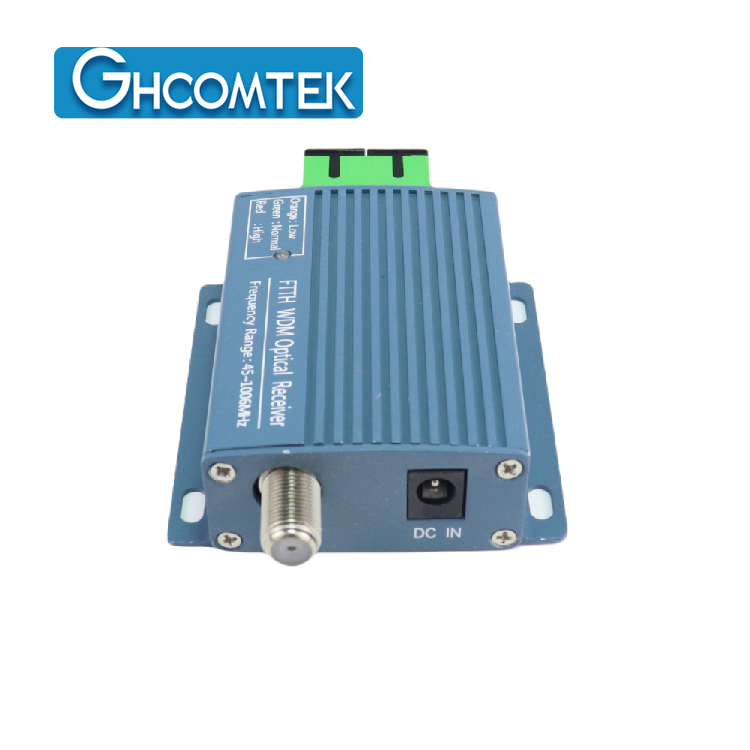

Active FTTH WDM Optical Receiver For XGSPON 1550nm For RF CATV,1490/1310nm 1270nm/1577nm For Internet HY-21-RX36

Description

HY-21-RX36 optical node is a compact in-door optical node especially designs for FTTH application. It designs with a single MMIC chip, compared with the two-stage amplifier structure, it has the characteristics of high integration, high performance, excellent anti-jamming performance. In addition, it can achieve best linearity and low noise figure with lowest power consumption by power saving sill. It also achieves digital AGC control skill by I2C interface. It provides a high-quality and high-performance FTTH network solution for cable TV operators.

Specification

	Optical Specifications (Forward Path)
1	Operating Wavelength		1550	nm	1540 ~ 1560
2	PON Pass Wavelength		1310/1490 &1270/1577nm	nm
3	Isolation	Pass band	≥35	dB	λ = 1550nm
3	Isolation	Reflect band	≥20	dB	λ = 1310nm, λ = 1490nm, λ = 1270nm, λ =1577nm
4	Insert loss	Pass band	≤0.8	dB	λ = 1550nm
4	Insert loss	Reflect band	≤0.6	dB	λ = 1310nm, λ = 1490nm, λ = 1270nm, λ =1577nm

5	Optical Return Loss	≥45	dB
6	Optical Power Input Range	-18 ~ +2	dBm	Recommended Range: -9 ~ 0
6	AGC Range	-9 ~ 0	dBm
	RF Specifications (Forward Path)
7	Bandwidth	45 ~ 1006	MHz
8	Flatness	±0.75	dB	At 25 ℃
9	RF impedance	75	Ohm
10	Output level	>80 >76 >70	dBuV	@AGC(-9 ~ 0), RFsource = 80 dBuV @ -11dBm, RFsource = 80 dBuV @ -15dBm, RFsource = 80 dBuV
11	Output return Loss	16	dB	Typical
