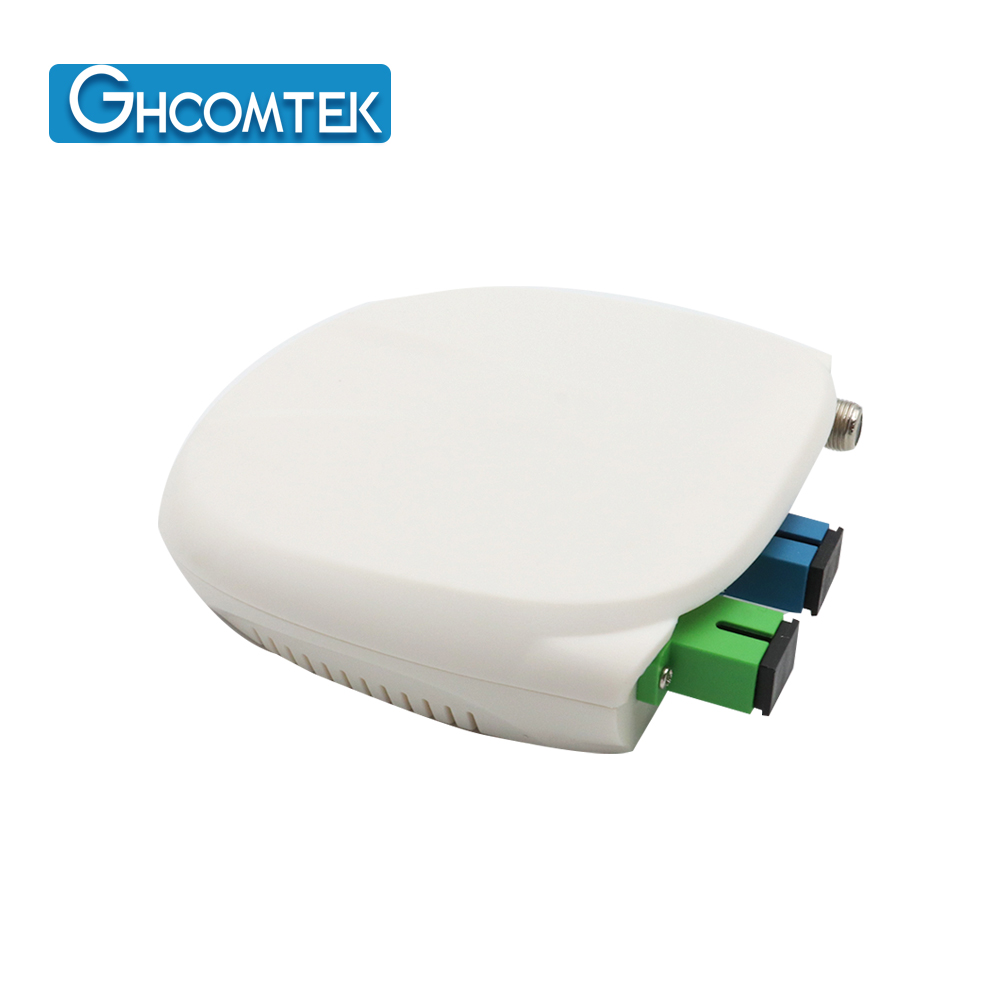

Active FTTH WDM Optical Receiver For XPON 1550nm For RF CATV,1490/1310nm For Internet HY-21-R19

Description

FTTH type optical receiver is a home-based optical receiver, catering to the ultimate goal of development of optical access for FTTH (FTTH) network, analog or digital signal can be realized. The equipment uses low-power optical detector, GaAs and optical control AGC technology to meet the needs of FTTH CATV reception. Variety of functional products in the applications slightly different.

FTTH type optical receiver HY-21-R19 with AGC, plug-in photocell.

HY-21-R19 with WDM andAGC.

Specification

Technical Data	HY-21-R19W1/HY-21-R19W2
Wavelength	1100~1600nm&1550nm
Optical input power	0dBm~-10dBm(analog) 0dBm~-22dBm(digital)
Return loss	>45dB
Optical connector	FC/APC&SC/APC FC/PC&SC/PC
Bandwidth	40~862&1006MHz
Flatness	±0.75dB@40~862MHz&1006MHz
Rf output reflection	≥16dB@40~550MHz ≥14dB@550~860&1006MHz
Output level control	0~18dB
Output level	>80dBuV(AGC: @-9~+0dBm)
Output port	1
Output impedance	75Ω
AGC range	-15dBm~-6dBm&-12dBm~-3dBm&-9dBm~0dBm
CNR	≥51dB
CTB	≥65dB
CSO	≥62dB
Supply voltage	DC5V
Adaptor voltage	AC220V
Internal voltage	DC5V
Working temperature	-25℃~+45℃
Consumption	<2W
Product dimension	11210628mm
Carton weight	1.26KG (10pcs)
