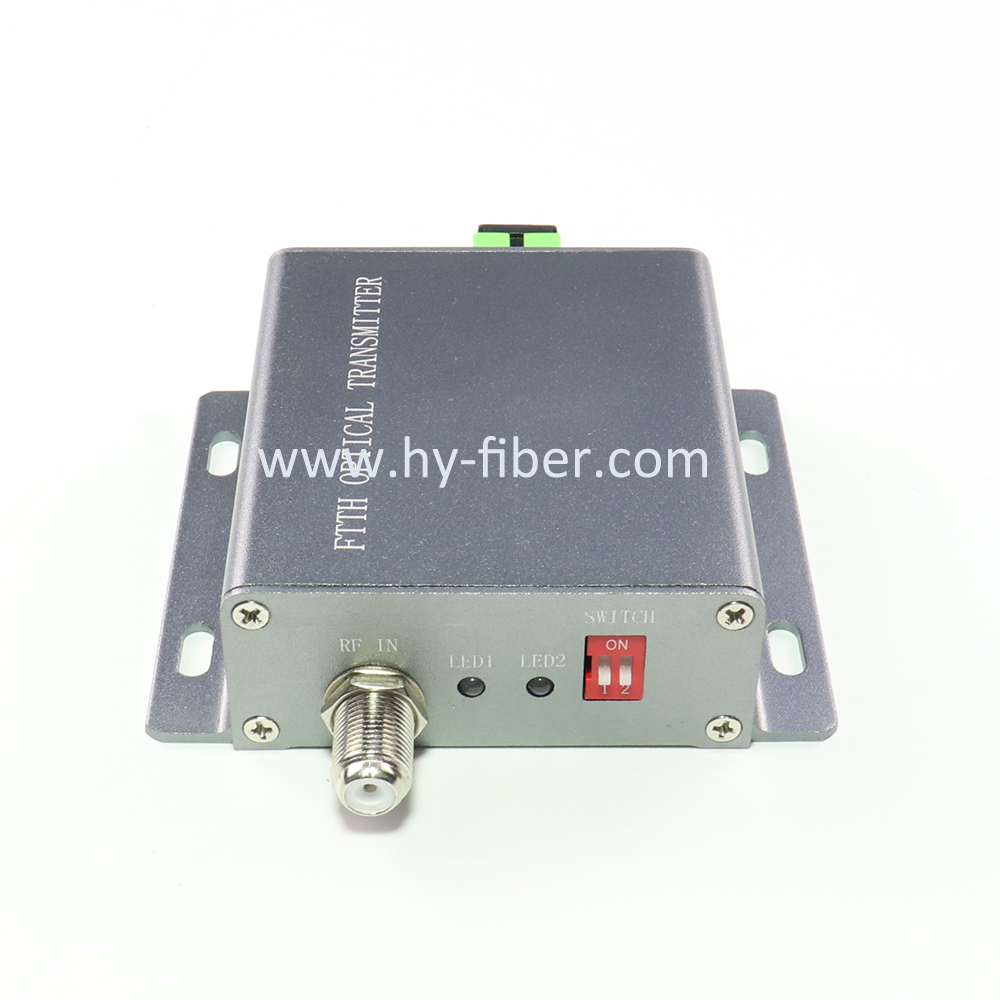

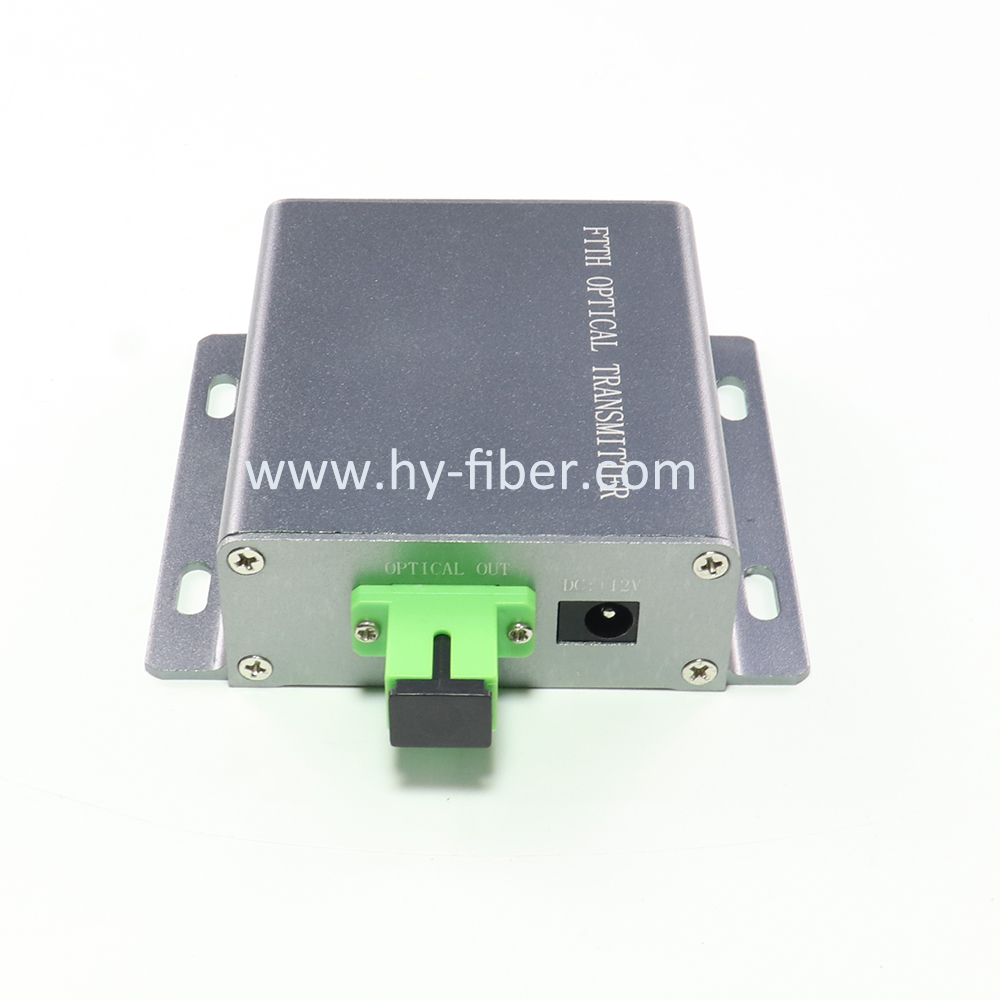

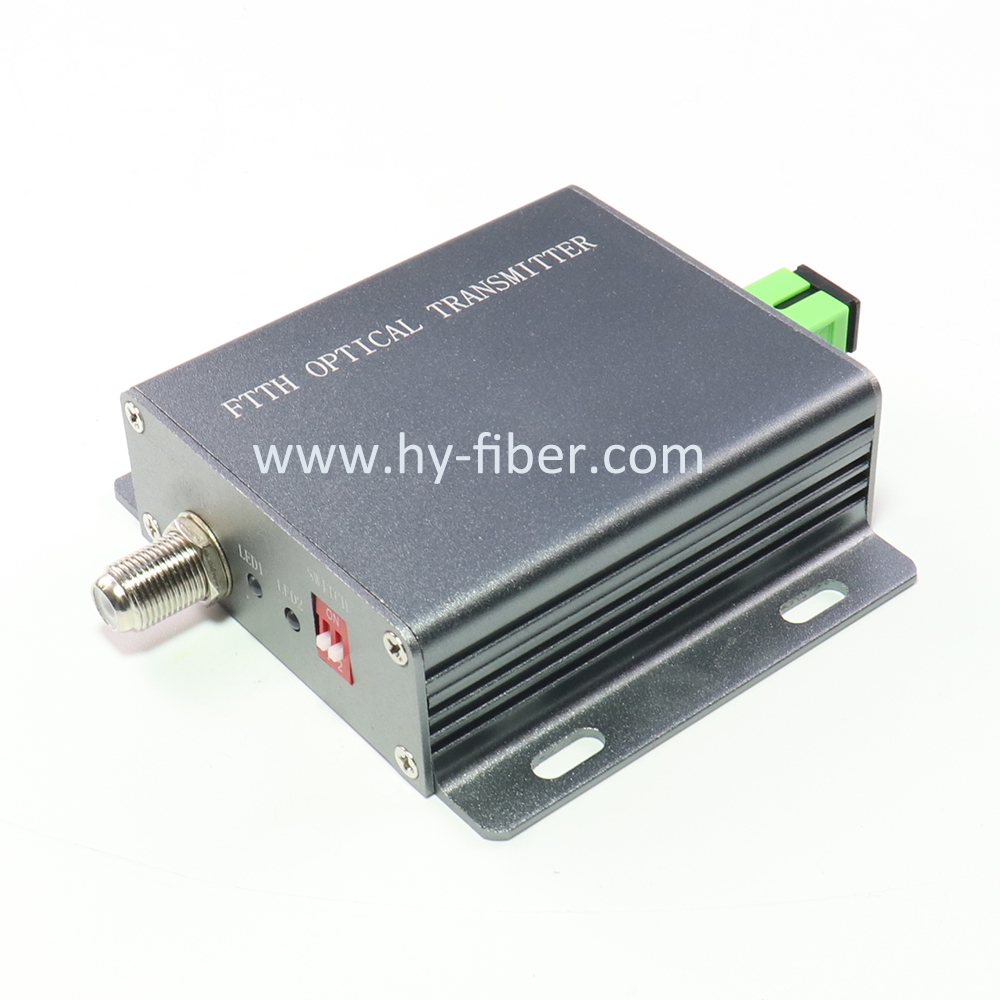

Specification
Features:
1. Designed for FTTH(Fiber To The Home) networks
2. Wide operating frequency range:45~2150MHz
3. Excellent Linearity and flatness
4. Single-mode fiber high return loss
5. Using GaAs amplifier active devices
6. Ultra low noise technology
7. Using DFB coaxial small package laser
8. Smaller size and easier install
9. Output 13/18V、0/22KHz for LNB working
10. Using bicolor LEDs for 13/18V,0/22KHz output indication
11. Using Aluminum alloy Housing, good heat dissipation performance
Specifications:
Number | Item | Unit | Description | Remark |
Customer Interface |
1 | RF Connector |
| F-female |
|
2 | Optical Connector |
| SC/APC |
|
3 | Power Adapter |
| DC2.1 |
|
Optical Parameter |
4 | Optical Return Loss | dB | ≥45 |
|
5 | Output Optical Wavelength | nm | 1550 |
|
6 | Output Optical Power | mW | 10 | 10dBm |
7 | Optical Fiber Type |
| Single Mode |
|
RF+SAT-IF Parameter |
8 | Frequency Range | MHz | 45~860 |
|
950~2150 |
|
9 | Flatness | dB | ±1 |
|
10 | Input Level | dBµV | 80±5 | RF |
75±10 | SAT-IF |
11 | Input Impedance | Ω | 75 |
|
12 | Return Loss | dB | ≥12 |
|
13 | C/N | dB | ≥52 |
|
14 | CSO | dB | ≥65 |
|
15 | CTB | dB | ≥62 |
|
16 | LNB Power supply | V | 13/18 |
|
17 | Maximum Current For LNB | mA | 350 |
|
18 | 22KHz Accuracy | KHz | 22±4 |
|
Other Parameter |
19 | Power Supply | VDC | 12 |
|
20 | Power Consumption | W | <3 |
|
21 | Dimensions | mm | 105x84x25 |
|
3. Ordering Information
Model | Product Description |
HY-21-S15T03 | Output power lever: 2mW(3dBm) |
|
HY-21-S15T10 | Output power lever: 10mW(10dBm) |
|
