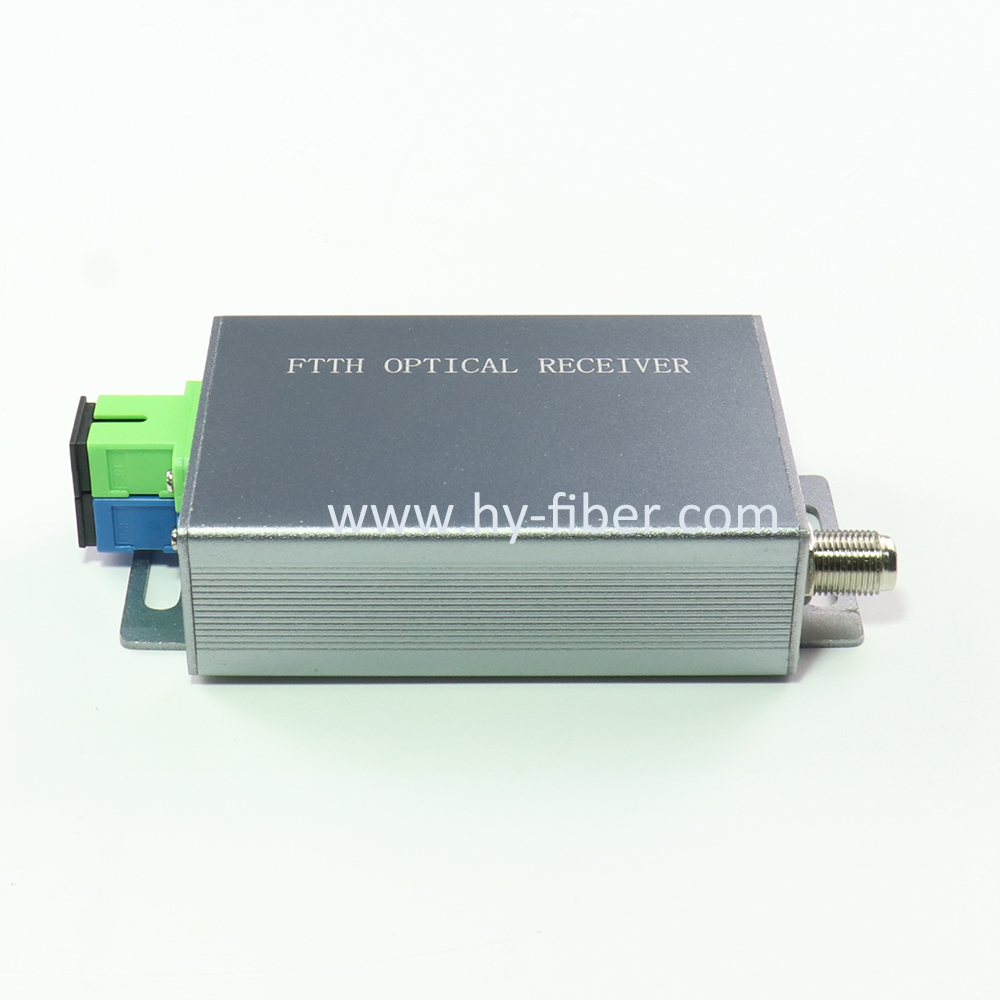

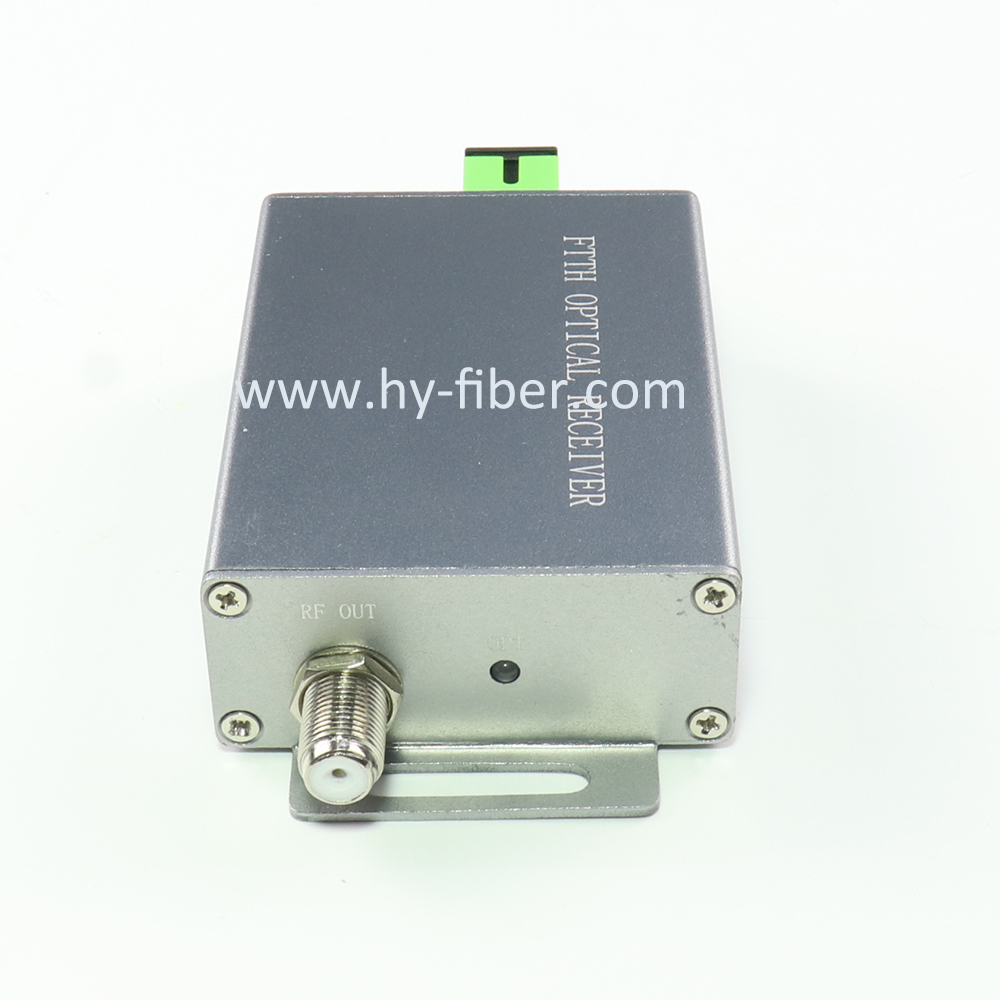

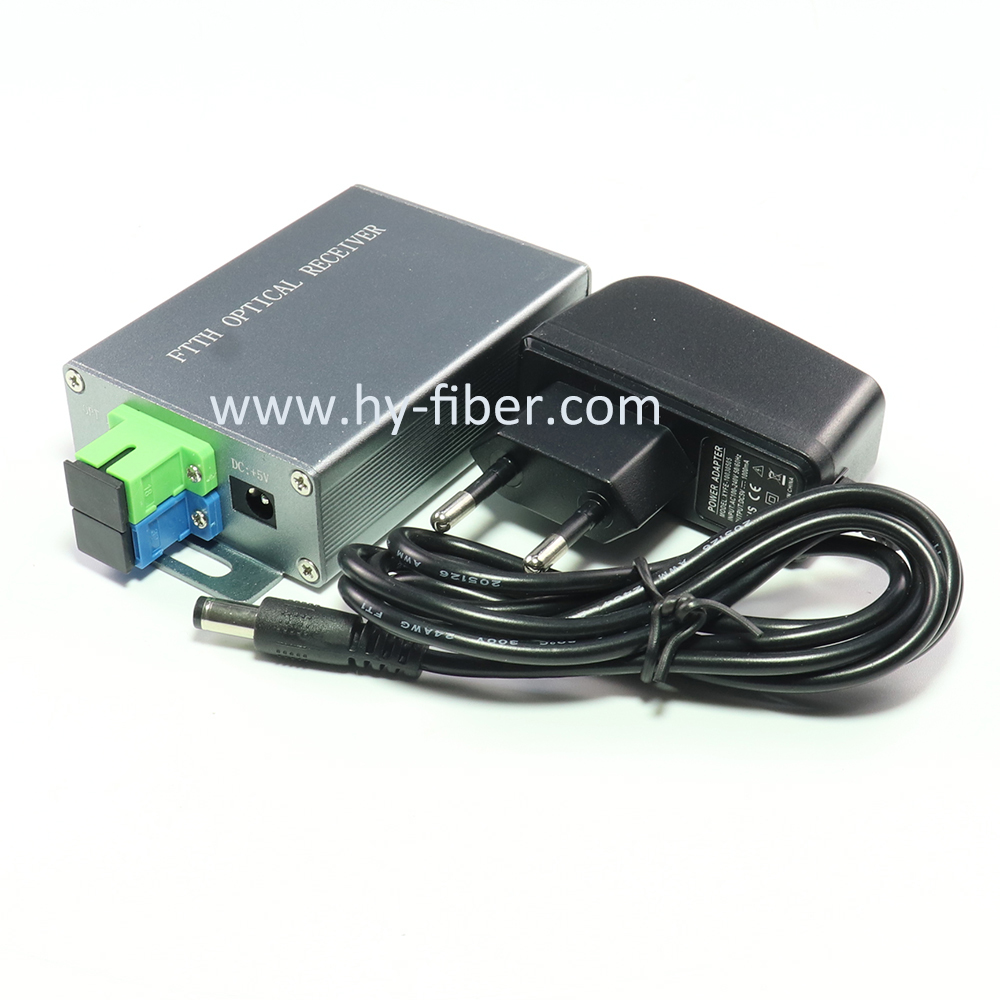

    CATV+SATV Optical WDM Receiver

    CATV+SATV Optical WDM Receiver


    Description

     Features:

    1. Designed for  FTTH(Fiber To The Home) networks

    2. Excellent linearity and flatness

    3. Wide range of optical input power

    4. Single-mode fiber high return loss

    5. Using GaAs amplifier active devices

    6. Ultra-low noise technology

    7. Smaller size and easier install

    8. Bicolor LEDs for optical power indication (Red:optical power<-12dBm,Green:-12dBm<optical power<+1dBm,Red & Green Flashing:optical power>+1dBm)

    9. Build-in optical  AGC and WDM function

    10. Using Aluminum alloy housing, good heat dissipation performance






    Specification

    Number

    Item

    Unit

    Description

    Remark

    Customer Interface

    1

    RF Connector


    F-female


    2

    Optical In Connector


    SC/APC


    3

    Optical Out Connector


    SC/PC


    4

    Power Adapter


    DC2.1


    Optical Parameter

    5

    Responsivity

    A/W

    ≥0.9


    6

    Receive Optical Power

    dBm

    -18～+3


    -10～0

    AGC

    7

    Optical Return Loss

    dB

    ≥45


    8

    Input Wavelength

    nm

    1100～1650


    9

    Receive Wavelength

    nm

    1550


    10

    Pass Wavelength

    nm

    1310/1490

    PON

    11

    Optical Fiber Type


    Single Mode


    RF Parameter

    12

    Frequency Range

    MHz

    45～2150




    13

    Flatness

    dB

    ±1


    14

    Output Level

    dBµV

    ≥80

    AGC

    15

    CNR

    dB

    ≥50

    -1dBm input power

    16

    CSO

    dB

    ≥65


    17

    CTB

    dB

    ≥62


    18

    Return Loss

    dB

    ≥12


    19

    AGC Stability

    dB

    ±1


    20

    Output Impedance

    Ω

    75


    Other Parameter

    21

    Power Supply

    VDC

    5


    22

    Power Consumption

    W

    <2


    23

    Dimensions

    mm

    113x57x25
