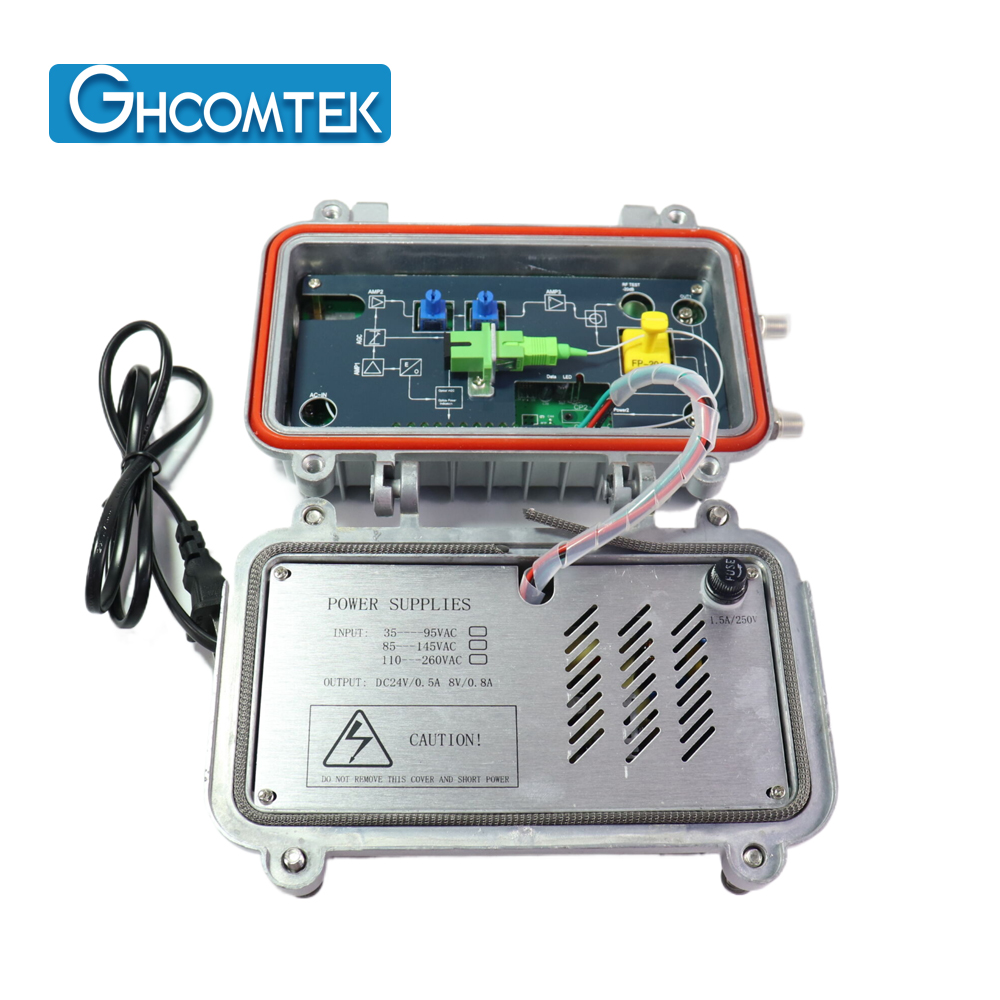

FTTH Outdoor Optical Receiver HY-21-R01


Description

HY-21-R01 optical receiver mainly used in trunk and lateral optical fiber network, it can supply high quality Videos and data service.

R01 series have independent RF return channel and plug play reverse optical transmitter component, with excellent CNR,CSO, CTB index, as well as efficient photoelectric conversion box matching functions to ensure high quality signal transmission, can for network upgrades at any time.

This product adopts steel cable hoisting type die‐casting waterproof shell,has good sealing quality, and good heat dispersing performance, as well as completely shield against electromagnetic interferenceeffects, it can be used in various occasions.







Specification



SpecHY-21-R01
Bandwidth47‐750MHz/47‐862MHz
Wave length1290—1600nm
Optical input power range-7dB~ +2dBm
Optical connectorFC/APC or SC/APC
Optical return loss≥45 dB
Flatness±0.75dB
Gain adjustable range0—20 dB
RF output return loss≥14dB
CNR≥51dB
CTB≥65dB(note2 )
CSO ≥60dB(note2)
RF output Impedance75Ω
Working Voltage36‐65Vac/220±10%Vac (SMPS)
Operating temperature‐25~+55℃
