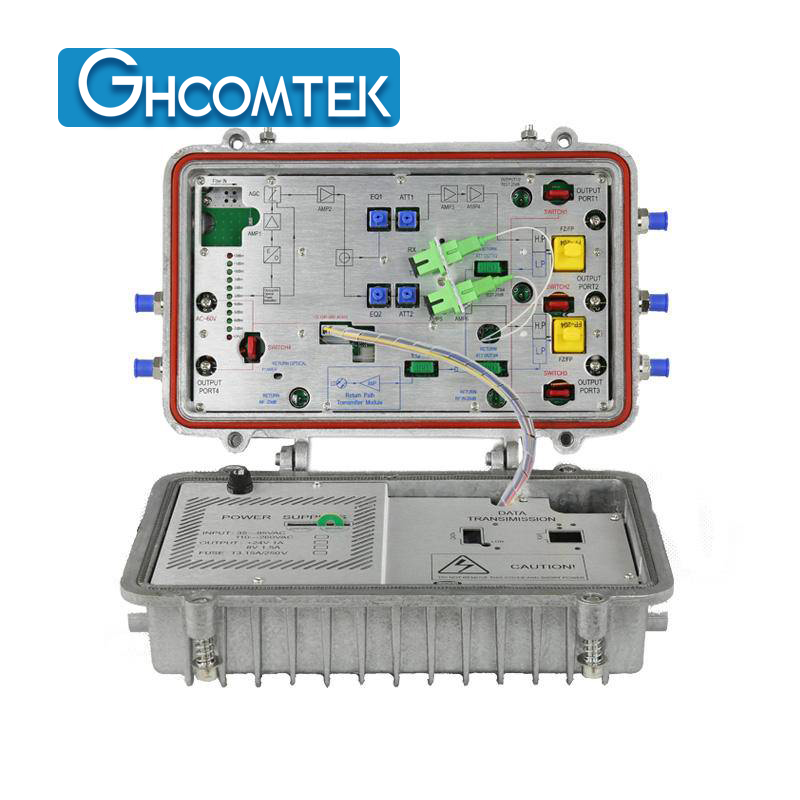

FTTH Outdoor Optical Receiver HY-21-R02

Description

R02 optical receiver is an outdoor 4 outputs waterproofing receiver. It is mainly used in the building, community or village with concentrated users and high level multi‐outputs distribution network. Also suitable to used in the place where it is not convenient to take the electricity and single equipment drives many users. It can work together with ONU or EOC to realize the network convergence. This machine adopt GaAs for amplification at the front stage and GaAs power double amplifier module in the back stage. Adjustable ATT and EQ is convenient for debug. .It is the ideal model of the construction of CATV network.

Specification

Item	Unit	Technical Parameters
Forward Path Parameters
Optical Parameters
Receiving Optical Power	dBm	-8 ~ +2
Optical Return Loss	dB	>45
Optical Receiving Wavelength	nm	1100 ~ 1600
Optical Connector Type		SC/APC or specified by the user
Fiber Type		Single mode
Link Parameters
C/N	dB	≥ 51
C/CTB	dB	≥ 65	-2dBm input, output power 106BμV ATT 0dB
C/CSO	dB	≥ 60
RF Parameters
Frequency Range	MHz	45 ~862
Flatness in Band	dB	±0.75
Rated Output Level	dBμV	≥ 108(-8～2dBm)
Max Output Level	dBμV	≥ 110
Output Return Loss	dB	≥14
Output Impedance	Ω	75
Return Path Parameters
Wavelength	nm	1100-1600
Bandwidth	MHz	5-30&42&65(max:200)
Output power	mW	1&2
flatness	dB	±0.75
General Characteristics
Power Voltage	V	A：AC（150~265）V；B：AC（35~90）V
Operating Temperature	℃	-40~60
Consumption	VA	≤ 30
Dimension	mm	325200120
