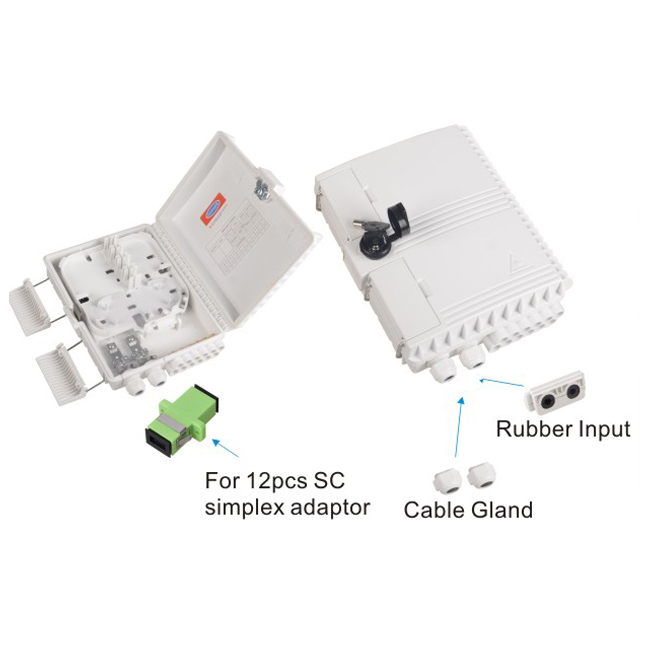

FTTH Splice Enclosure 12 Port HY-20-T12D


Description

This Lockable IP54 distribution box offers the ability to terminate 24 fibres housed in a strong robust ABS+PC enclosure for indoor and outdoor applications.

With the ability to us both SC simplex and LC duplex adaptor types offering a flexible solution to the end user, enabling them to incorporate a multi functional enclosure which allows easy access during installation or re-work with no disturbance of the existing cable or fibres.

In addition to the interchangeable adaptors the enclosure also offers up to 24 exit points for patching cables and 1 standard cable entry point for loose tube, tight buffer, pre-terminated and steel tape armoured cable.

Each enclosure has integrated strength member tie positions and bend radius protection with the addition of a removable front door allowing for quick and easy installation.






Specification

Feature

u  Up to 24 fibres

u  Removable splice tray for easy installation

u  Multiple adaptor options available

u  4 adaptor positions

u  Accepts loose tube, distribution and pre-terminated cables

u  Integrated bend radius protection

u  Sealing glands for up to 24 exiting cables + 1 incoming cable

u  Removable door for ease of installation

u  ROHS compliant

u  Supplied with 24 heatshrink splice protectors

u  Supplied with transit tubing

u  Supplied with wall fixings and tie wraps

Application

u  Data centres, premise installations, telecommunication networks

u  Ethernet, Fibre Channel, ATM, LAN, MAN and WAN

u  Data communication and telecommunication networks

u  Wall mounted,pole amounted,Indoor/outdoor applications
