Parameters

Unit

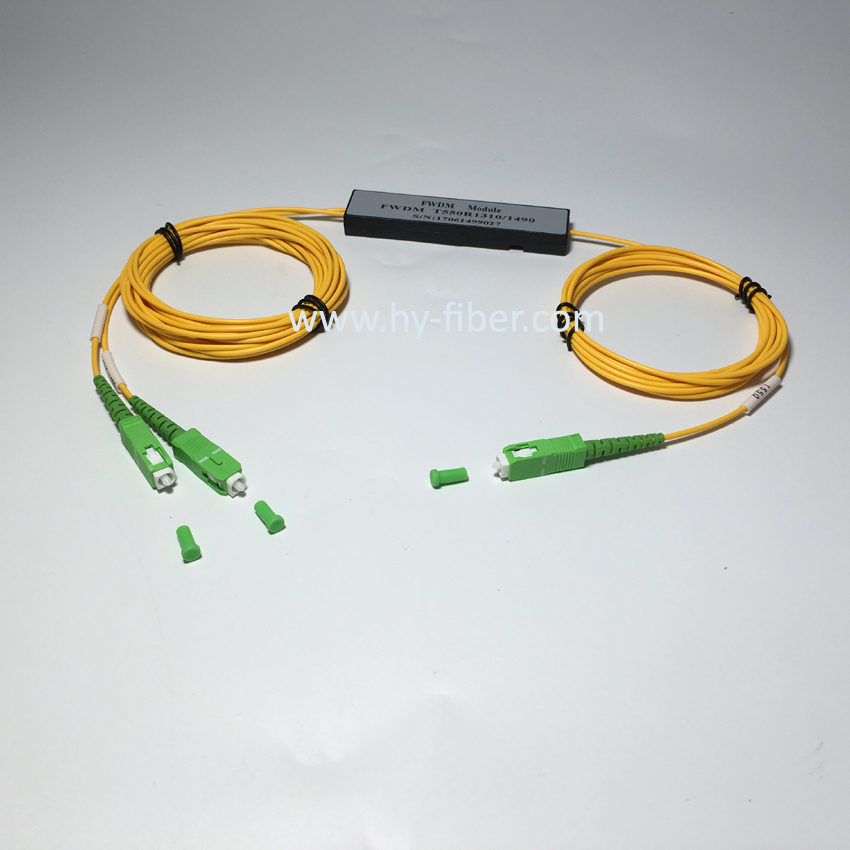

HY-FWDM Device

Operating Wavelength

T:  transmission wavelength

R:  reflection wavelength

1310±50,1490±10, 1550±10

1610±10, 1625±25, 1650±20

nm

1

T1550         R1310/1490

2

T1490         R1310/1550

3

T1310         R1490/1550

4

T1550/1610    R1310/1490

5

T1550/1625    R1310/1490

6

T1625         R1310/1490/1550

7

T1650         R1310/1490/1550

Insertion Loss

dB

Transmission:   ≤ 0.6

Reflection:   ≤ 0.4

Transmission Channel Isolation

dB

≥ 30

Reflection Channel Isolation

dB

≥ 17

PDL

dB

≤ 0.1

Wavelength thermal stability

nm/?

≤ 0.003

Insertion loss thermal stability

dB/?

≤ 0.005

Return loss

dB

≥ 45

Optical Power

mW

≤ 500

Operating Temperature

?

-10 ~ +70

Storage Temperature

?

-40 ~ +85

Relative Humidity

%

5 ~ 95

Dimension

mm

Φ5.5×34

Φ4.2×25

90×20×10

Note: 1. Customization is available.
      2. Specified without connector, and add an additional 0.2dB loss per connector.
