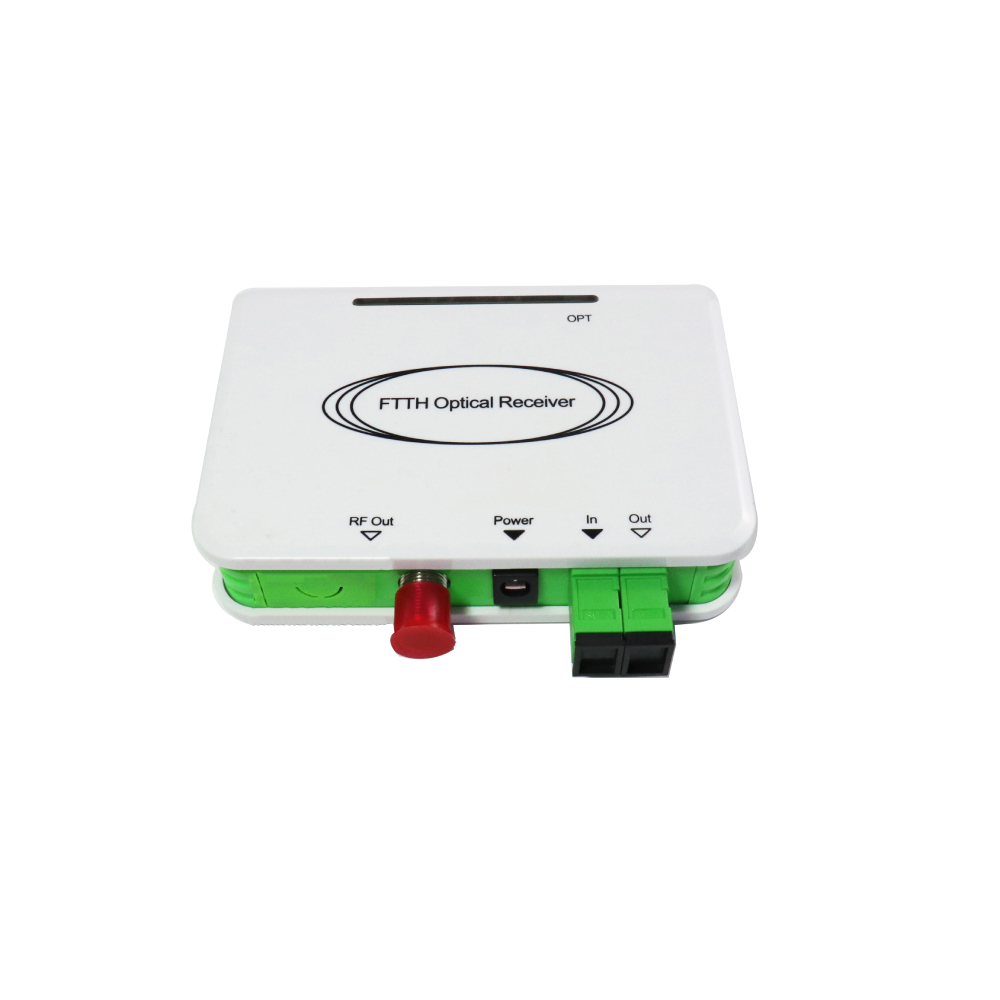

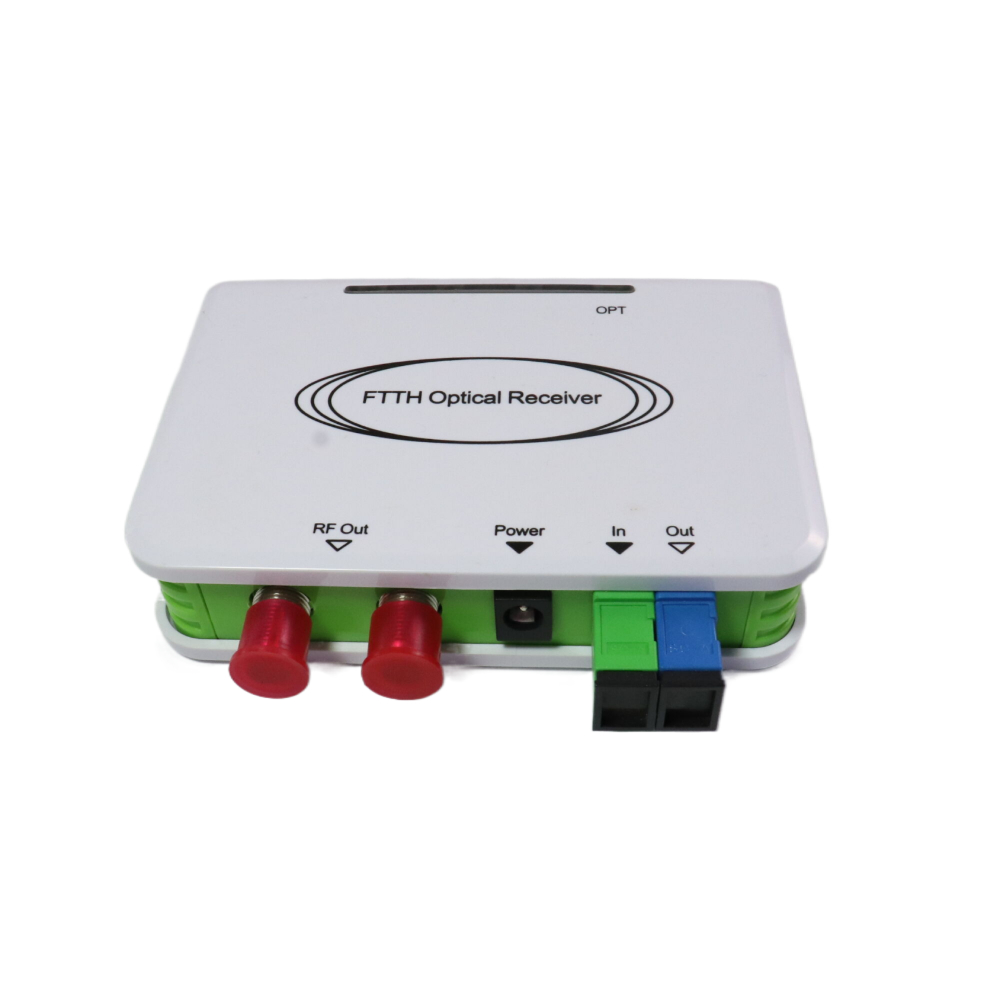

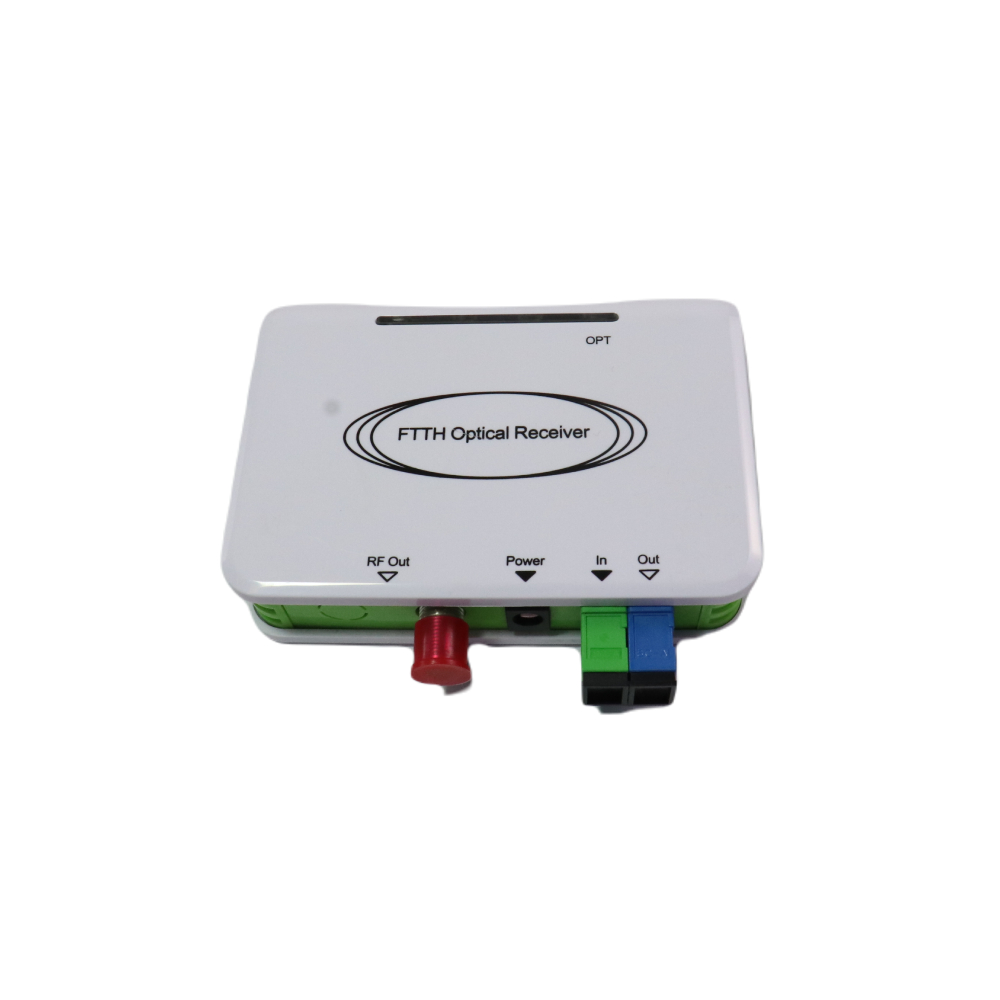

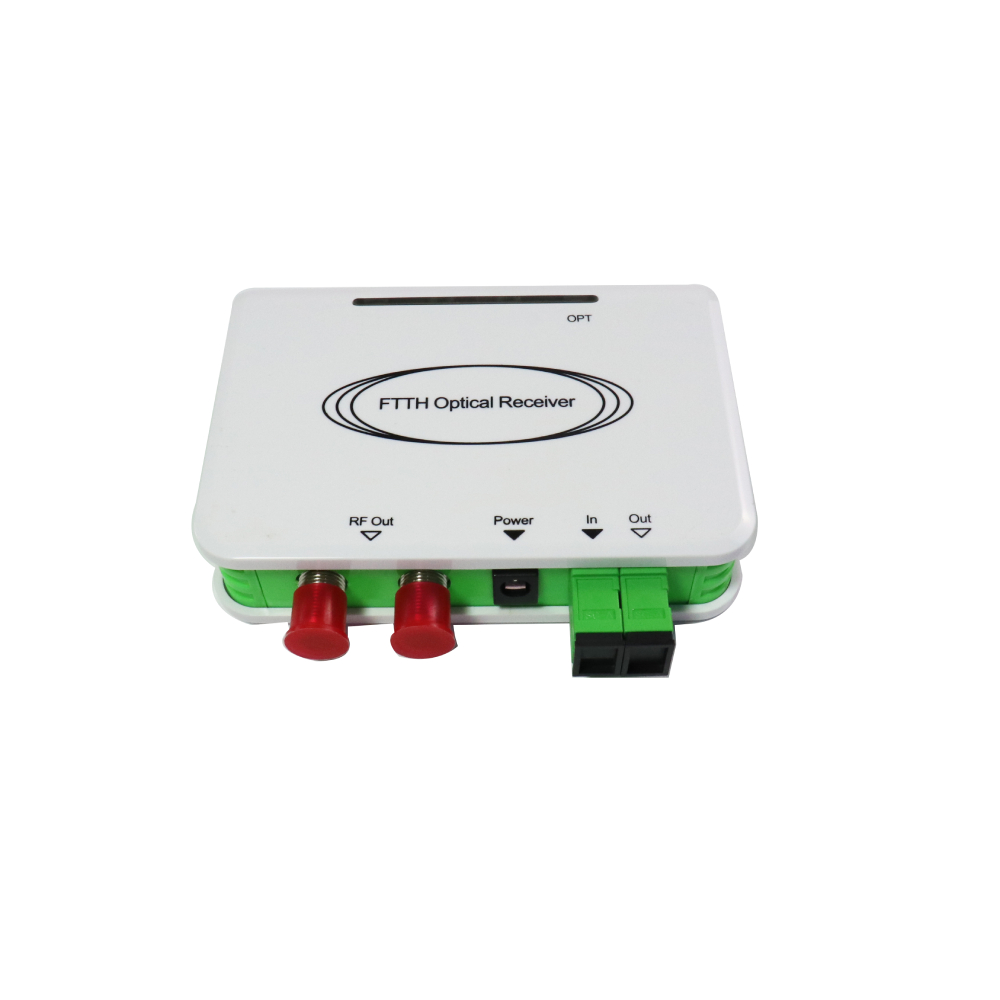

HY-21-R23 FTTH CATV Fiber Optical Receiver


Description

HY-21-R23x optical node is a compact in-door optical node especially designs for FTTH application. It designs with a single MMIC chip, compared with the two-stage amplifier structure, it has the characteristics of high integration, high performance, excellent anti-jamming performance. In addition, it can achieve best linearity and low noise figure with lowest power consumption by power saving sill. It also achieves digital AGC control skill by I2C interface. It provides a high-quality and high-performance FTTH network solution for cable TV operators.








Specification




Item

Description

Value

Unit

Conditions / Notes





Optical Specifications (Forward Path)



1

Operating Wavelength

1550± 10

nm



2

PON Pass Wavelength

1310,1490

nm

(1260~1360), (1480~1500)



3

Isolation

Pass band

35

dB

λ= 1550nm



Reflect band

20

dB

λ= 1310nm,

λ= 1490nm



4

Insert loss

Pass band

0.8

dB

λ= 1550nm



Reflect band

0.6

dB

λ= 1310nm,

λ= 1490nm



5

Optical Return Loss

45

dB



6

Optical Power Input Range

-18 ~ +2

dBm

Recommended Range: -9 ~ 0



AGC Range

-9 ~ 0

dBm







RF Specifications (Forward Path)



7

Bandwidth

47 ~ 1002

MHz





8

Flatness

±0.75

dB

At 25



9

RF impedance

75

Ohm



10

Output level

>80

>76

>70

dBuV

@AGC(-9 ~ 0), RFsource = 80 dBuV

@ -11dBm, RFsource = 80 dBuV

@ -15dBm, RFsource = 80 dBuV



11

Output return Loss

16

dB

Typical




Analog TV Parameters




Test channel

59

CH(PAL-D)

535.25MHz



12

OMI

3.8

%



13

CNR?

=59

>57

>51.7

dB

@-9dBm,RFsource >90dBuV

@-11dBm,RFsource >90dBuV

@-17dBm,RFsource >90dBuV



14

CTB

-65

dB



15

CSO

-65

dB




Digital TV Parameters



16

OMI

4.3

%



17

MER

>39.2

>36.2

>31

dB

@-9dBm,RFsource = 80dBuV

@-11dBm,RFsource = 80dBuV

@-17dBm,RFsource = 80dBuV



18

BER

<1.0E-9

dB

@-17dBm,RFsource = 80dBuV




Environmental Parameters



19

Operating Temperature

-25 ~ 85

?





20

Storage Temperature

-40 ~ 85

?





21

Storage Humidity

95

%

Non- condensation



22

Power consume

<1

W




User Interface



23

Optical Connector Type

FC/APC or SC/APC



Optional



24

Power interface

DC5V/0.5A



External adapter



25

RF Output Connector

1 or 2



Optional



26

Optical Power Indicator

Three color lights



Red:    > 0 dBm

Green:  0 ~ -11 dBm

Orange:  <-11 dBm



27

Size

110*90*25

mm





28

Weight

0.10

kg
