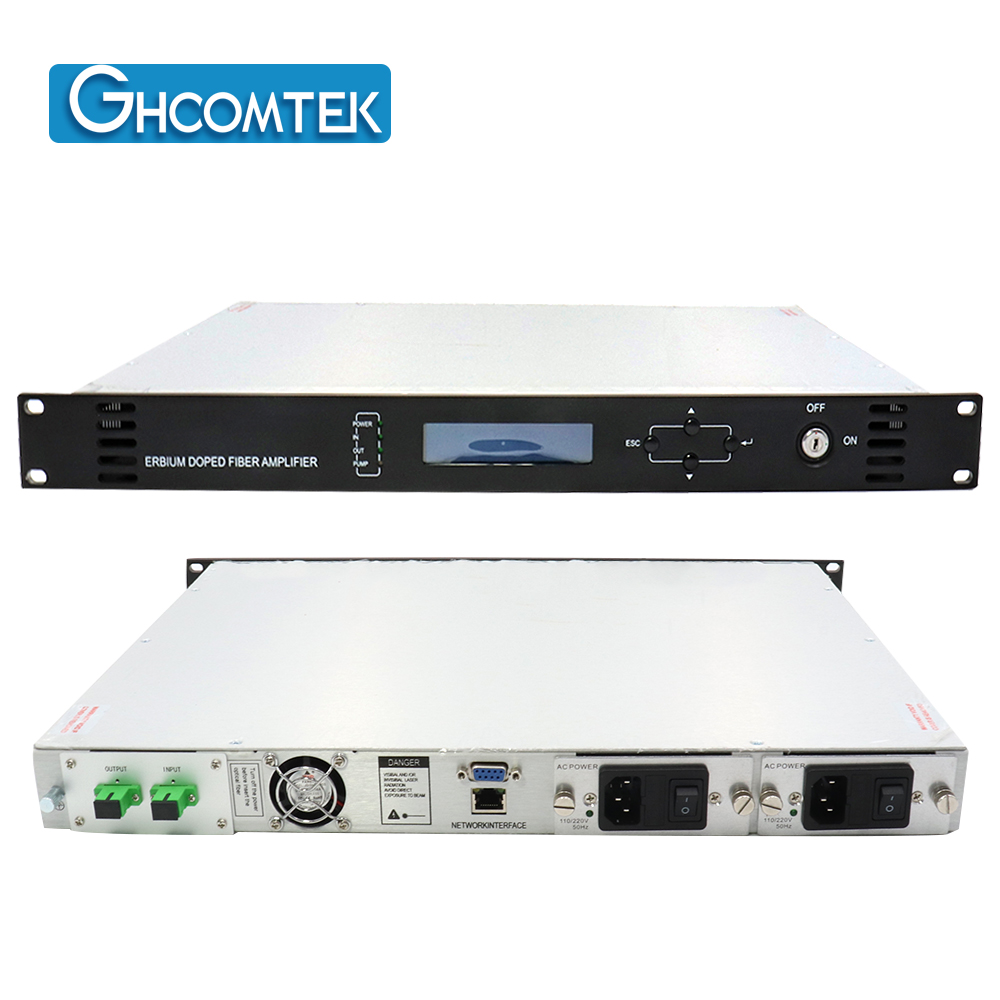

Optical Pre Amplifier SC/APC HY-21-OPASxx

Description

HY-21-OPAxx series EDFA, its core components adopt the world's top brand pump laser and erbium-doped fiber. The optimized optical design and production process ensure the best optical performance. The perfect electronic controlled modes of APC (automatic power control), ACC (automatic current control) and ATC (automatic temperature control) circuits are adopted to ensure high stability and reliability of the output power, at the same time, it also guarantees excellent optical path index.

Specification

Category	Items	Unit	Index			Remarks
Category	Items	Unit	Min.	Typ.	Max.	Remarks
Optical Index	Operating Wavelength	nm	1530		1565
	Optical Input Range	dBm	-10		10
	Output Power	dBm	13		27	1dBm interval
	Output Adjustment Range	dB	-4		0	Adjustable, each step 0.1dB
	Output Power Stability	dB			0.2
	No. of Output Ports	No.	1		4	Specified by user
	Noise Figure	dB			5	Pin: 0dBm
	Gain	dB	8		33
	Switch Time	ms			8.0
	Optical switch insert loss	dBm	0.5		0.8
	PDL	dB			0.3
	PDG	dB			0.3
	PMD	ps			0.3
	Remnant Pump Power	dBm			-30
	Return Loss	dB	50
	Fiber Connector	dB	SC/APC			FC/APC、LC/APC
General Index	Network Management Interface		SNMP,WEB supported
	Power Supply	V	90		265	AC
	Power Supply	V	-72	48	-36	DC
	Power Consumption	W			15	Dual power supply, 24dBm
	Operating Temp	℃	-5		65	Full automatic case temp control
	Storage Temp	℃	-40		85
	Operating Relative Humidity	%	5		95
	Dimension	mm	360×483×44			W、L、H
	Weight	Kg	5
