Outdoor Bi-direction Trunk Amplifier 60/110/220V HY-21TA03


Description

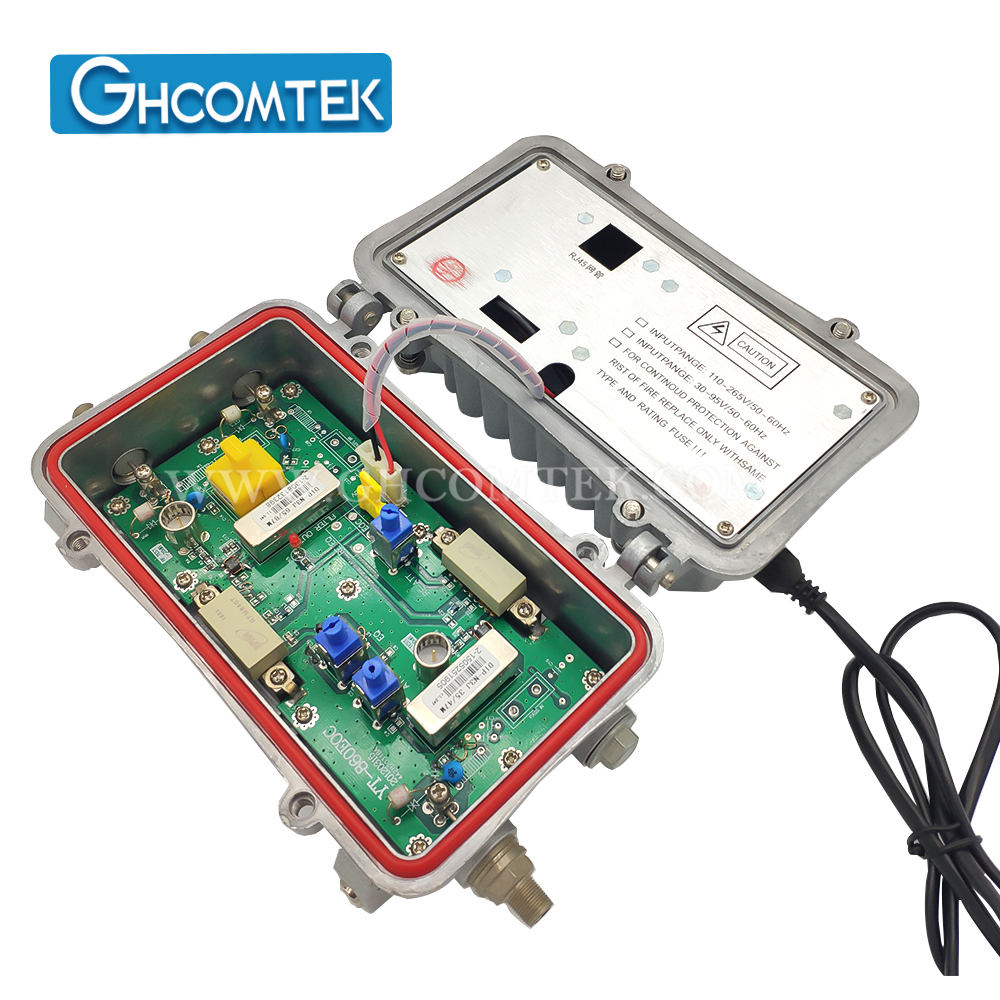

HY-21-TA03 Serials field-type bidirectional EOC subscriber's amplifier is specifically designed for last “1km” of CATV transmission network. It has good property, low power consumption, high reliability, and excellent value for money, suitable for medium and small-scale bidirectional transmission network and multi-level transmission of trunk line or distribution networks with high requirements. It adopts MOTOROLA PHILIPS NEC imported module, with stable performance, low noise figure, high output level. It has two equalizers in the front end and in the back end with two outputs ports. Its branch and distribution can make change according to your needs. Its one input port and two output ports have over-current protection function (with over-current inserts shear inside). It is more convenient to debug because of the plug-in duplex filter, plug-in fixed(or adjustable) equalizer and attenuator, and the scientific and reasonable on-line detection ports.

The equipment can work steadily for a long time under bad outdoor environmental condition because of the aluminum waterproof housing, high reliability switching power supply and strict lightning protection system






Specification

Parameter

HY-21-TA03

Forward Path Parameters

Bandwidth

47-860MHz

Nominal Gain

30dB

Flatness

±0.75dB

Noise Figure

≤10dB

Return Loss

≥16dB

Nominal Input Level

72dBuV

Nominal Output Level

102dBuV

Gain Adjustable Range

0-80-10dB is better

Slop Adjustable Range

3-1824V maximum

CTB

≥61dB

CSO

≥61dB

Reverse parameters

Bandwidth

5-87M

Nominal Gain

-2dB

Flatness

+0.3dB

Noise Figure

≤6dB

Return Loss

≥14dB

Nominal Input Level

98dBuV

Nominal Output Level

96-80dBuV

Gain Adjustable Range

-2-18dB

Slop Adjustable Range

-3dB/ grade

CTB

≥78dB

CSO

≥70dB

Other

Lightning   Resistance

5KV10/700S

Power   Voltage

AC 220±10%or AC 30~60v

Power   Consumption

12VA

Dimensions

190×260×90mm

Working   Temperature

-20±50
