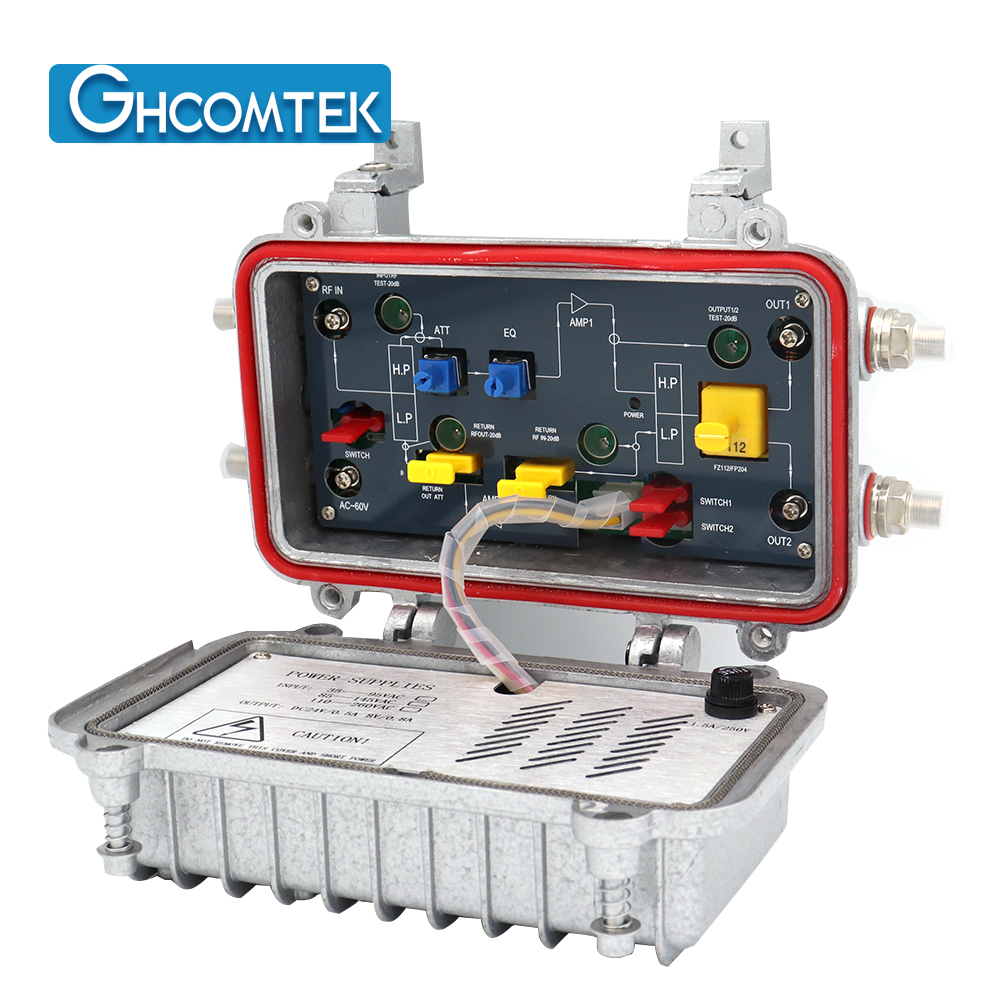

Outdoor Trunk Amplifier Power Supply 60/110/220V HY-21-TA02

Description

HY-21-TA02 CATV amplifier is mainly to compensate the signal attenuation and equalization of high and low imbalance during the transmission process. Make sure the signal can be transmitted stably with high quality and long distance. It is mainly used in all kinds of cable TV systems, satellite TV systems, community closed circuit TV system, hotel audio visual system, army and school education audio visual system, etc.

Specification

Parameter	HY-21-TA02
Bandwidth	45-862MHz
Nominal Gain	30dB
In-Band Flatness	±0.75dB
Noise Figure	≤10dB
Return Loss	≥14dB
Nominal Input Level	72dBuV
Nominal Output Level	102dBuV
Gain Adjustable Range	0-20dB
Slop Adjustable Range	0-18dB
CTB	≥58dB (note1)
CSO	≥57dB (note1)
Noise Figure	≤10dB
Return Loss	≥14dB
Group delay	≤ 10ns(112.25MHz/116.68MHz)
Singal hum ratio	<2%
(10/700us) Surge-resistant Voltage	>5KV
Gain stability	-1.0+1.0dB
Voltage	36-65/220±20%Vac
Size	280×195×60mm
Weight	1.5kg
