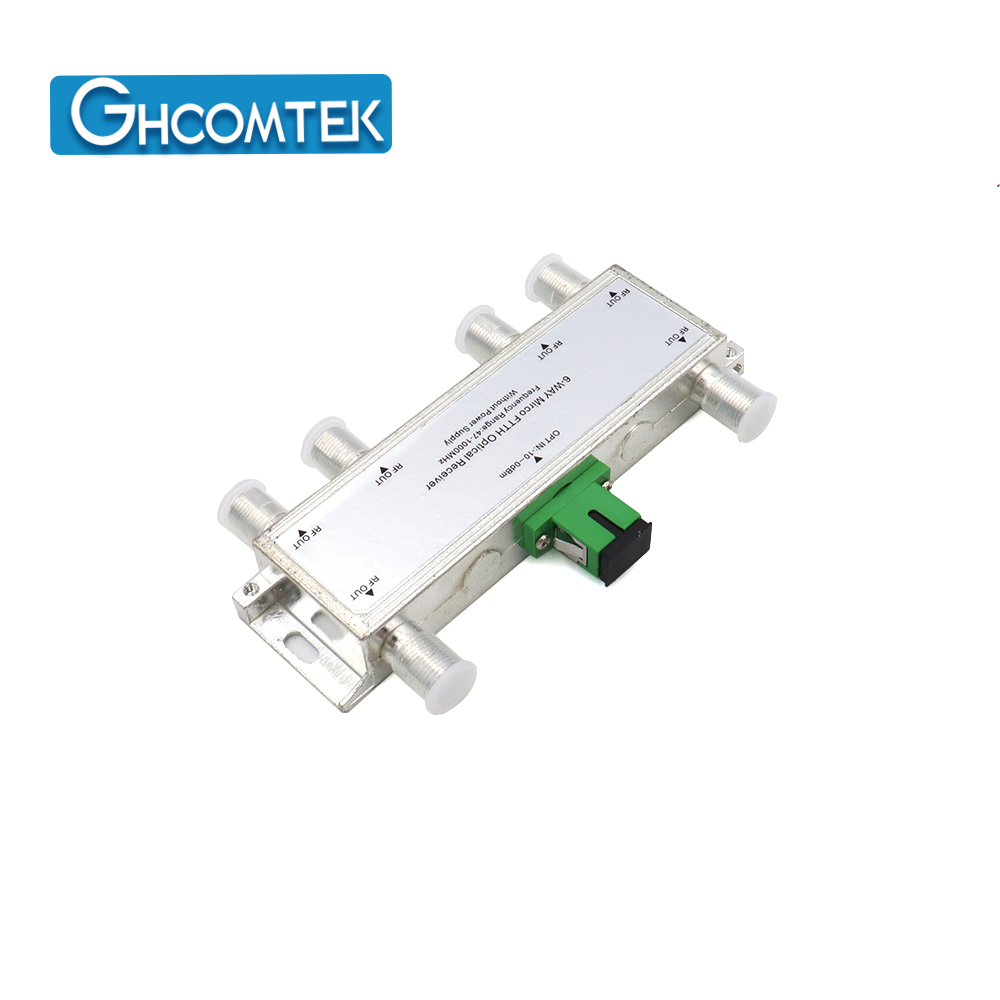

Passive FTTH Optical Receiver 6 RF Port With 1550nm Filter HY-21-R16x


Description

HY-21-R16 series CATV converter for digital television,fiber to the home. This machine adopts the high sensitivity optical receiving tube,without power supply,no power consumption.When the input optical power output level Pin=-1dBm, Vo=68dBuV, can be economically and flexibly apply the integration of three networks,fiber to the home network application.








Specification

Products Type

HY-21-R16/HY-21-R16F

Wavelength   of Input Beam(nm)

1100~1650

Input optical power(dBm)

-12~   0dBm

Output   Impedance of Radio Frequency(Ω)

75Ω

Type   of Optical connector:

SC/APC   or SC/UPC

Reflectional   loss of light(dB)

>45

C/N:

≥51dB

C/CSO

≥62dB

C/CTB

≥65dB

Range of frequencies

47~1000MHZ

Inner   flatness of band

±1.5dB

Output Return   of Radio Frequency:

16dB

Weight   of Product(g)

119g

Overall   Dimension(mm)

122x70x20mm

Packing list

Main products

Instructions

Warranty cards(1   Year)
