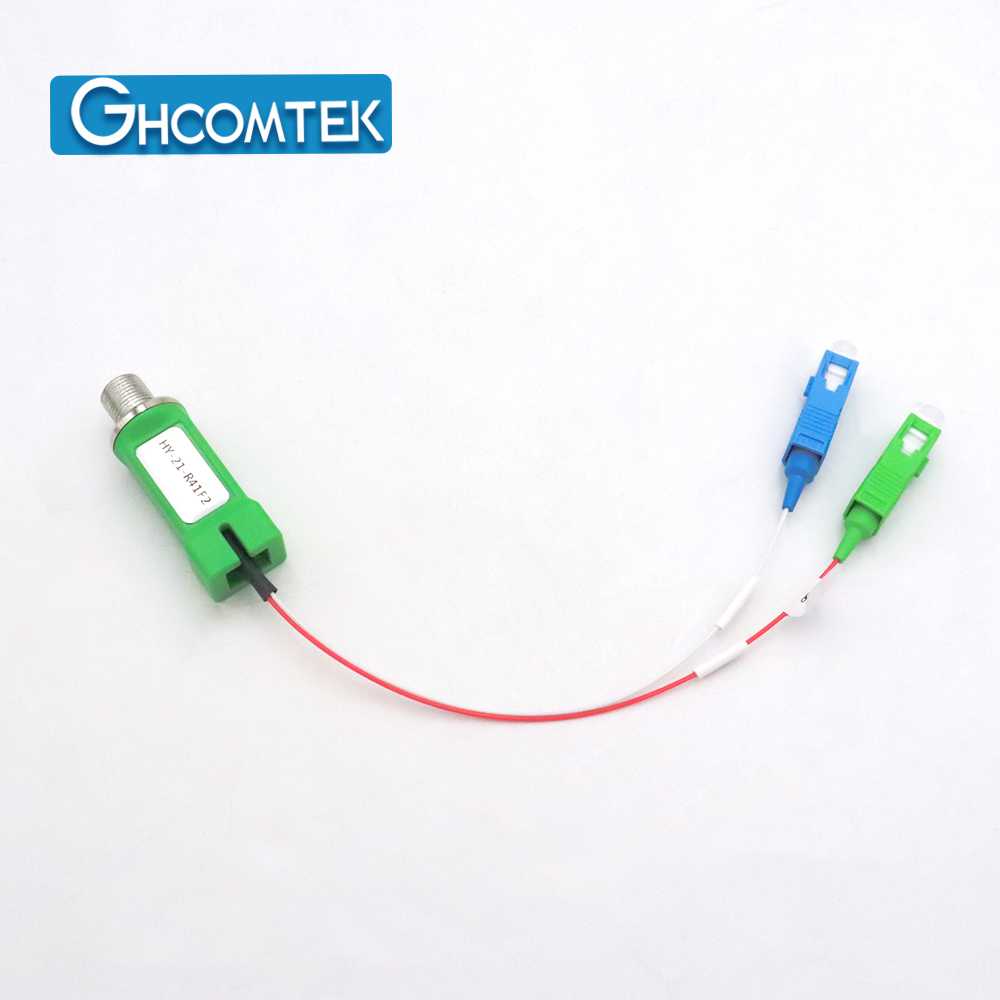

Passive FTTH WDM Optical Receiver For XPON 1550nm For RF CATV,1490/1310nm For Internet HY-21-R41Fx

Description

HY-21-R41 optical receiver is specifically designed for CATV FTTH network. Its main feature is low power consumption, small Volume and high reliability. Adopting aluminum alloy shell. It is an ideal product to build FTTH CATV network.Built-in WDM ， can be satisfied with one optical fiber transmission television signals(CATV)+ broadband data（PON），Separate receiving 1550 - nm wavelength section of CATV signals and output PON signals (1490/1310 nm).

Specification

Input optical power	2dBm~-10dBm	Receive Wavelength	1550nm
Optical Return Loss	＞45 dB	Bypass Wavelength	1310/1490nm
Optical connector form	FC/APC or SC/APC or FC/PC or SC/PC	Responsively	≥0.9A/W
Frequency Range	47~1000MHz	Optical Fiber Type	Single Mode
In-band flatness	±1dB@45~1006MHz	RF Connector	F-female or F-male
RF output reflection	≥16dB@ 47~550MH ; ≥14dB@1006MHz	CNR	≥51dB
Output level	62dBuV@0dBm input power	CTB	≥65dB
Output port number	1	CSO	≥62dB
RF output impedance	75Ω	Product net size
Operating temperature	-20℃ ~+55℃	Product net weight	0.006kg
