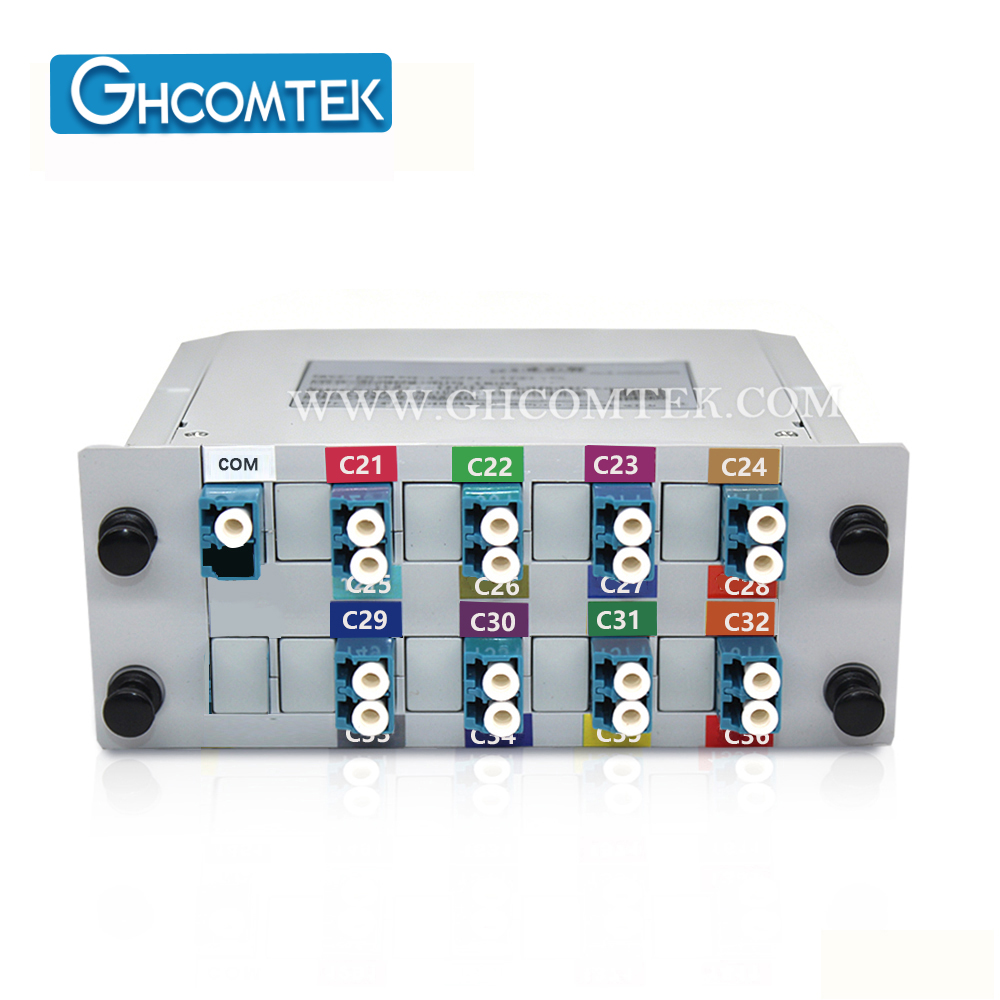

10-16CH Single Fiber 100GHz DWDM Module MUX/DEMUX TX/RX Plastic LGX Cassette Package LC/UPC HY-7-DWSCxx

Description

With the rapid development of industry informatization, the demand in long distance and large capacity bandwidth increased rapidly, resulting in the rapid growth in the traffic of the access layer, metro area layer and backbone network. The dependence on the bandwidth rent or optical fiber direct-connection already can not meet the needs of clients in the industry.

Specification

Parameters			CWDM MUX/ DEMUX 18CH Dualfiber
Center Wavelength (nm)			ITU, ITU+1
Passband (nm)			ITU±6.5
Operating Wavelength (nm)			1270\1290\1310\1330\1350\1370\1390\1410\1430\ 1450\1470\1490\1510\1530\1550\1570\1590\1610nm
Channels			6ch	8ch	12ch		18
Channel Space (nm)			20
Fiber Type			SMF-28e or customer specified
IL (dB)			<1.8	<2.4		<3.6		<4.8
Isolation (dB)		Adjacent Channel	≥30
		Non-Adjacent Channel	≥40
PDL (dB)			≤0.2
PMD (ps)			≤0.1
RL (dB)			≥45
Directivity (dB)			≥50
Maximum Optical Power (mw)			≤500
Operating Temperature ()℃			-20～75
Storage Temperature ()℃			-40～85
LGX ABS BoxPackage	Weight		0.1kg
	Dimensions		13010025MM
1U Rack Package	Weight		1.5kg
	Dimensions		43511044MM
3U Rack Package	Weight		2.5kg
	Dimensions		435110135MM
Outdoor Rack Package	Weight		1.4kg
	Dimensions		370280105MM
