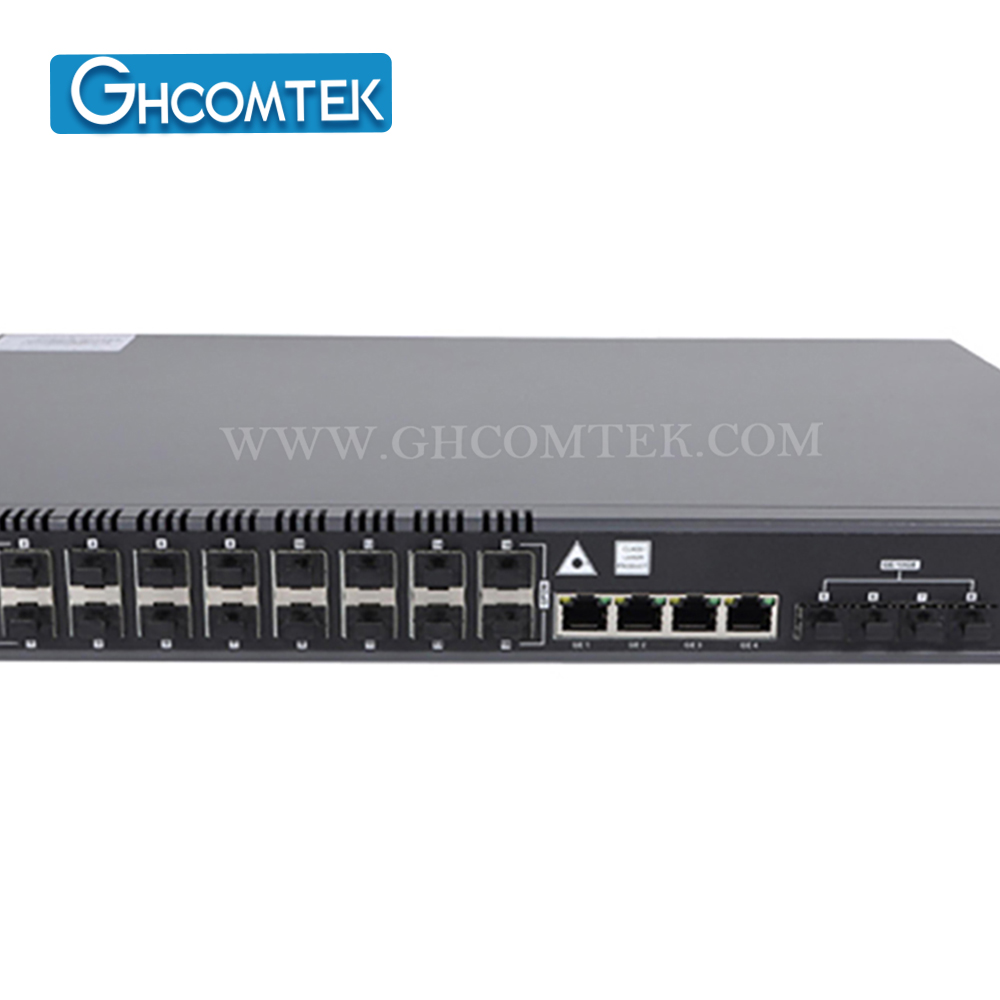

EPON 16 Port OLT SFP Slot HY-15-OLT16PE


Description

GHCOMTEK provides 16GE(copper) and 16*SFP/SFP+ slots independent interface for uplink, and 16*EPON OLT ports for downlink. It can support overall 256 ONU's with 64 pieces per each PON port.

GHCOMTEK EPON OLT products are 1U height 19 inch rack mount products. The features of the OLT are small,convenient, flexible,easy todeploy and high performance. It is appropriate to be deployed in compact room environment. The OLT's canbe used for "TriplePlay", VPN, IP Camera, Enterprise LAN and Internet service provider applications.






Specification

Item

HY-15-OLT16PE

Chasis

Rack

1U 19 inch standard box

Uplink Port

QTY

8

RJ45

4

SFP/SFP+

4

EPON Port

QTY

4

Physical Interface

SFP Slots

Max splitting ratio

1:64

Supported PON module level

PX20, PX20+, PX20++, PX20+++

Backplane Bandwidth (Gbps)

208

Port Forwarding Rate(Mpps)

71.424

Dimension (LxWxH)

442mm*200mm*43.6mm

Weight

2.705KG

Power Supply

AC 100~240 V, 50/60 Hz

DC Power Supply

DC: -48V

Power Consumption

30W

Operating
  Environment

Working Temperature

-20~+60°C

Storage Temperature

-40~+70°C

Relative Humidity

5~95% (non-condensing)
