Use range

This product evenly disperses the diamond   prepolymer and the new polymer material, coats the surface of the   high-strength film and then processes it by a high-precision cutting   process. It is used for degumming, rough grinding and fine grinding of the   optical fiber connector's fiber ferrule end face.

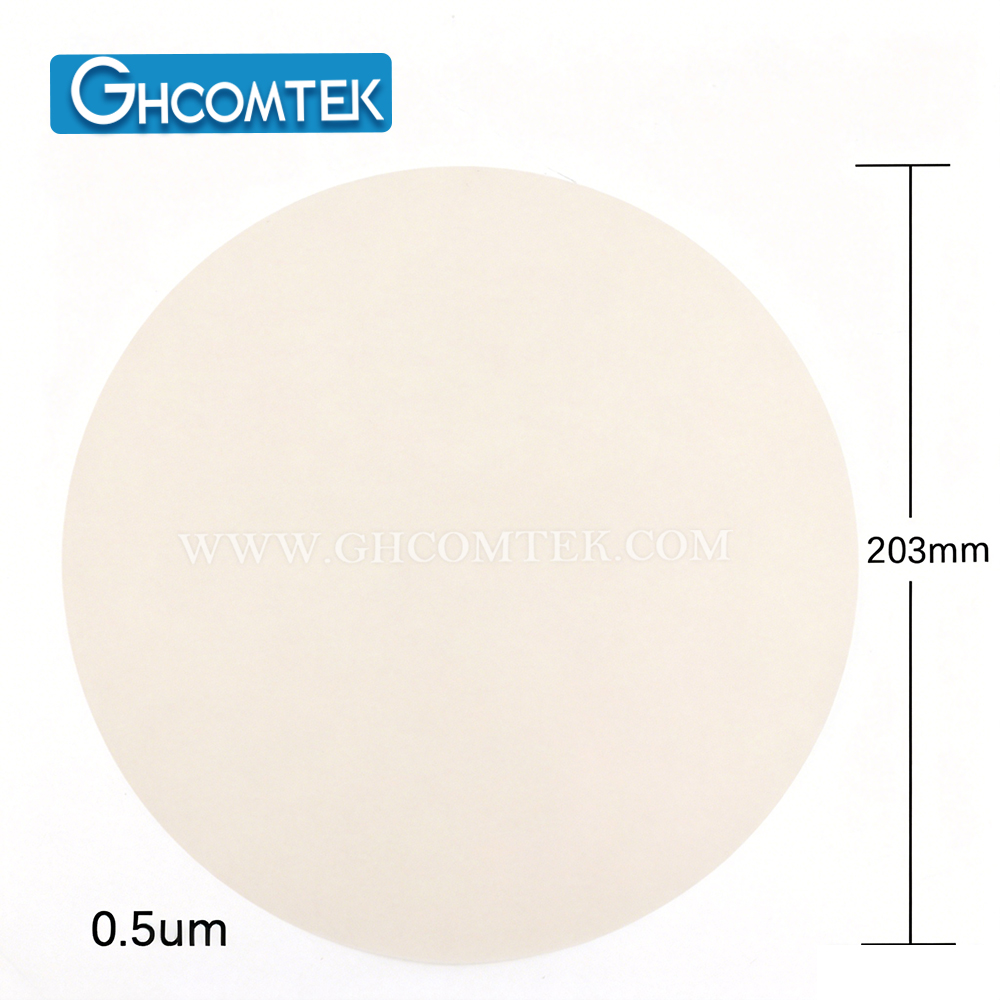

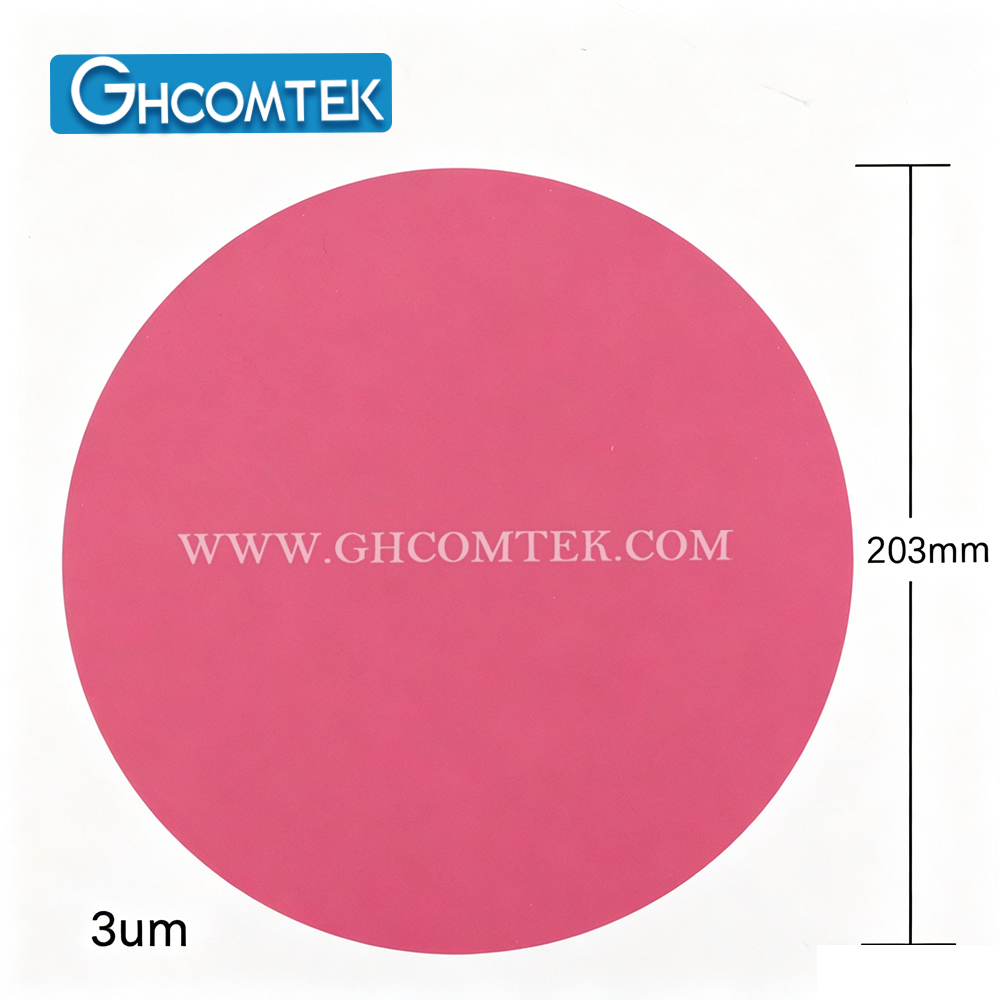

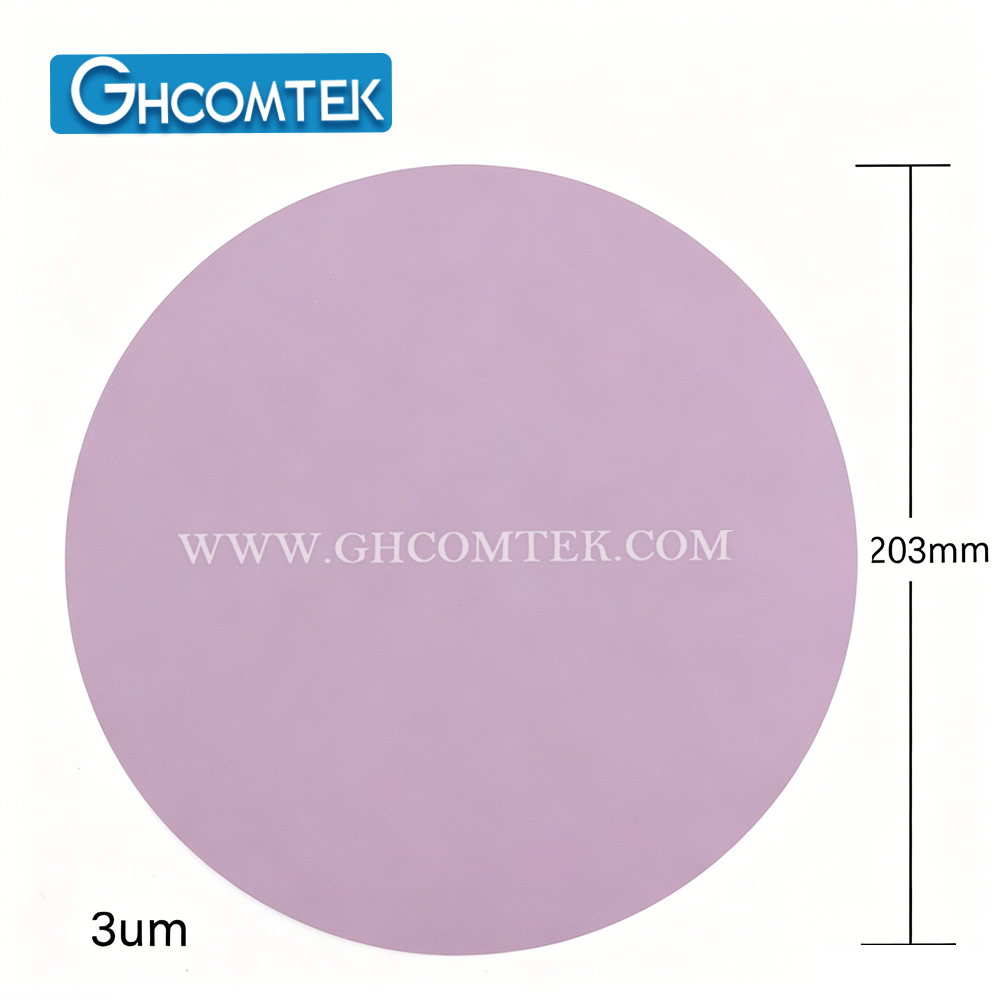

Lapping paper

Circle diameter 203mm

Model

0.5/1/3/5/6/9/15/16/30/45/50/60um

Main feature

1.High self-sharpness and stability, can   provide continuous grinding force;
  2.Large cutting force, short grinding time and high efficiency;
  3.The coating has high adhesion, good scratch resistance and long service   life;
  4.After polishing, the end face of the fiber is fine, which is good for the   next polishing.

Storage conditions

Storage temperature

0-35 ºC

Storage humidity

20-80%

Shelf life

2 years

Service life

50 ~ 80 times, different service   life according to different models of polishing machine and grinding process

Instructions

1.Before use, clean the fiber polishing   rubber pad, moisten it with a small amount of water, and attach   a polishing film on it.
  2.Wipe the coating surface of the polishing film with water, and squeeze out   the air between the polishing film and the polishing pad;
  3. Set the grinding time and pressure during use, please clean the surface   after each use

Precautions

Do not use organic solvents to scrub the   surface of the polishing film.
